Technical reference

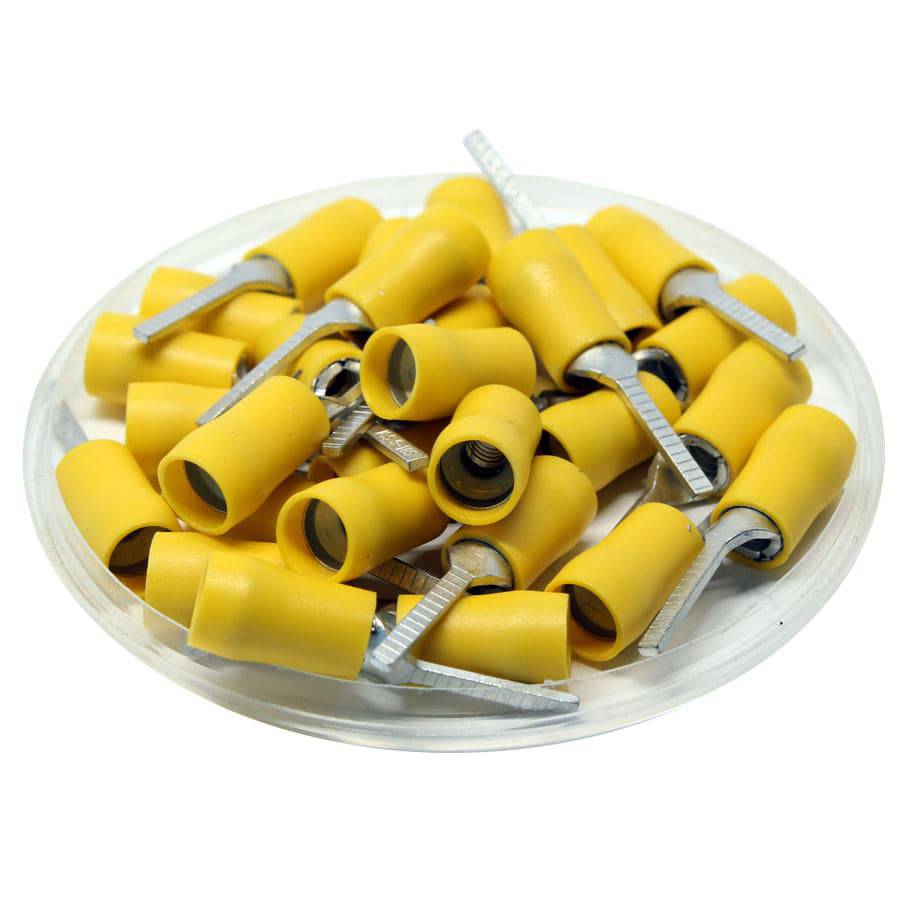

Procurement reference model: DBDS5-18. Wire Range: 12-10AWG; Terminal Material: Tin-Plated Copper; Insualtion Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 12-10AWG |
| Terminal Material | Tin-Plated Copper |
| Insualtion Material | Vinyl |
| Color | Yellow |
| Maximum Rating | 600 Volts - 105 o C |
| Max Electrical Rating | 50AMP |
| T | 1.0mm (0.03") |
| L | 31.0mm (1.22") |
| F | 18.0mm (0.71") |
| E | 13.0mm (0.51") |
| W | 2.0mm (0.08") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
Drawings and product details
