Technical reference

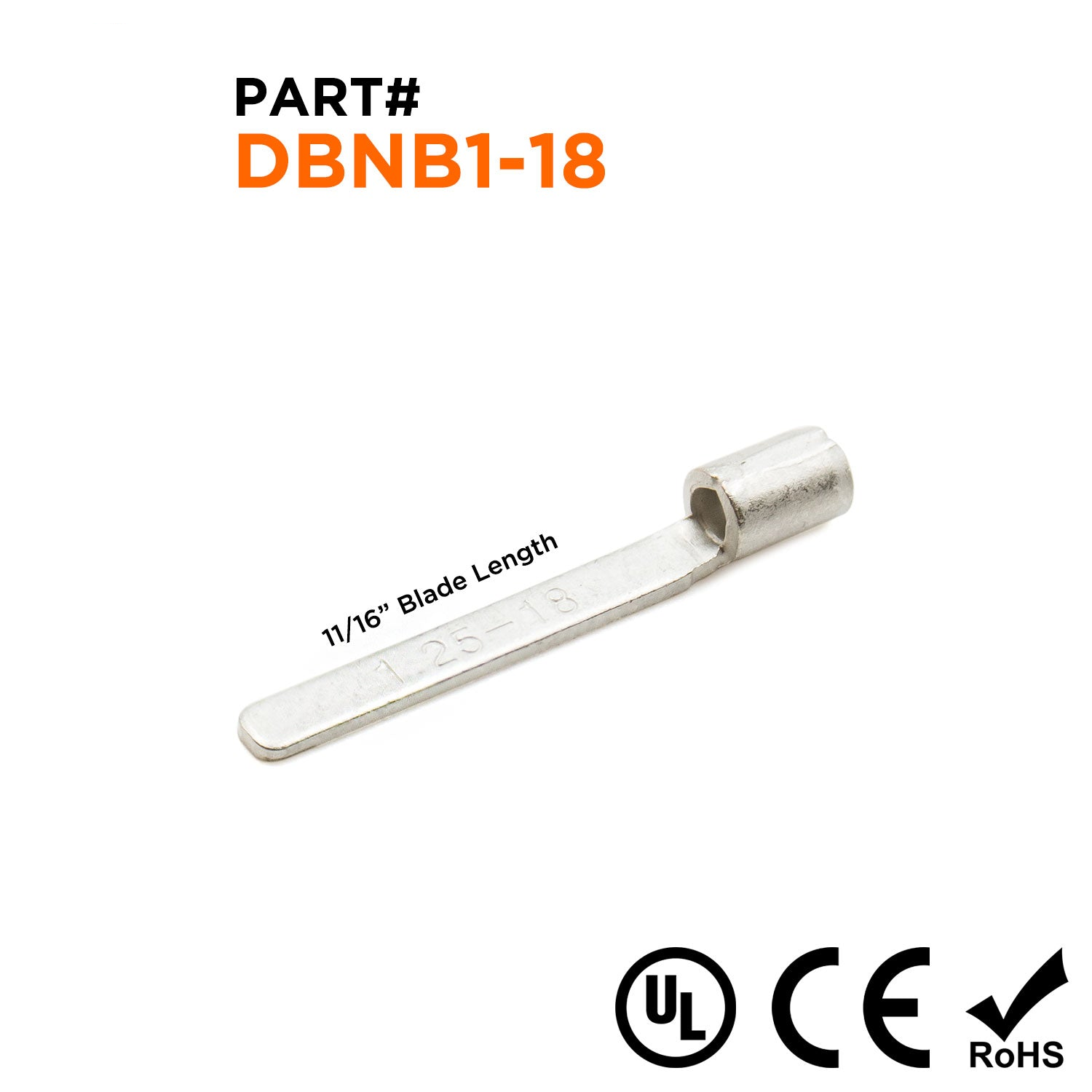

Procurement reference model: DBNB1-18. Wire Size: 22 to 16 AWG; W: 0.087" (2.2mm); F: 0.709" (18.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22 to 16 AWG |
| W | 0.087" (2.2mm) |
| F | 0.709" (18.0mm) |
| L | 0.898" (22.8mm) |
| E | 0.189" (4.8mm) |
| D | 0.134" (3.4mm) |
| D1 | 0.067" (1.7mm) |
| T | 0.030" (0.75mm) |
| Temperature Rating | 221°F (105°C) |
| Material | Tin-Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| 22 AWG | 9A |
| 20 AWG | 12A |
| 18 AWG | 17A |
| 16 AWG | 18A |
