Technical reference

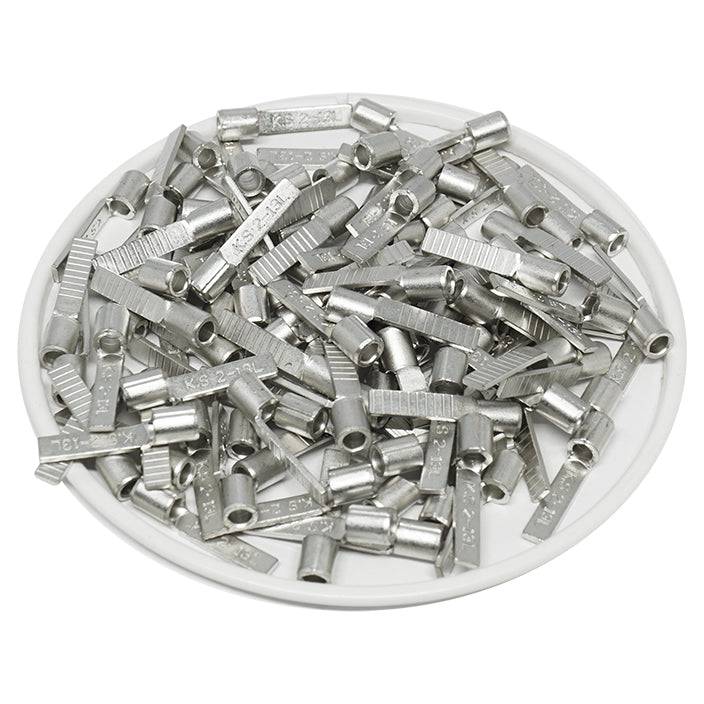

Procurement reference model: DBNBL2-13. Wire Size: 16 to 14 AWG; W: 0.118" (3.0mm); F: 0.512" (13.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16 to 14 AWG |

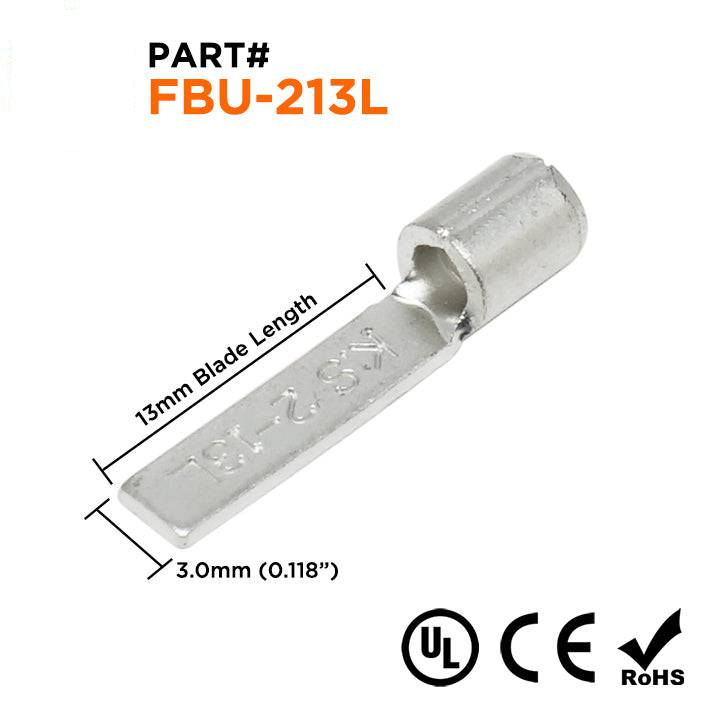

| W | 0.118" (3.0mm) |
| F | 0.512" (13.0mm) |
| L | 0.701" (17.8mm) |
| E | 0.189" (4.8mm) |
| D | 0.161" (4.1mm) |
| D1 | 0.091" (2.3mm) |
| T | 0.031" (0.8mm) |
| Temperature Rating | 221°F (105°C) |
| Material | Tin-Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| 16 AWG | 18A |
| 14 AWG | 30A |
