Technical reference

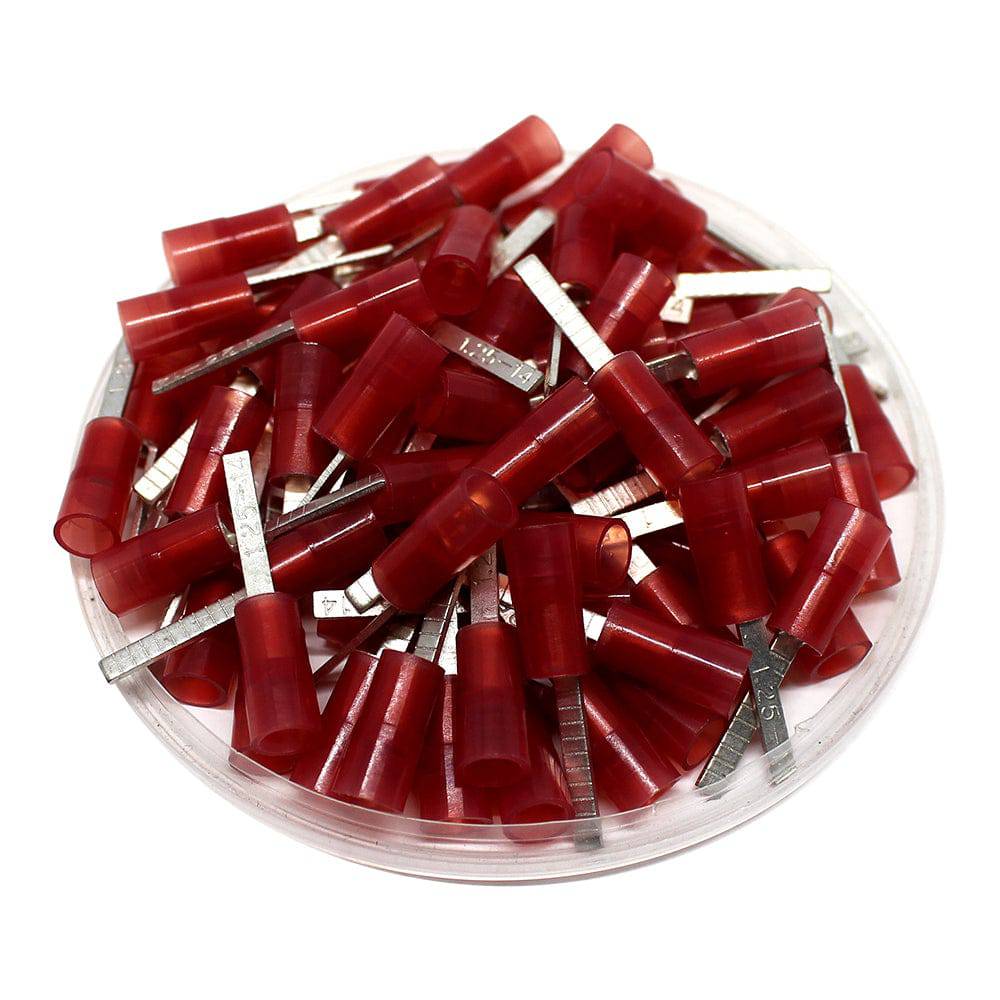

Procurement reference model: DBNYB1-14. Wire Range: 22-16AWG; Insulation: Nylon; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16AWG |
| Insulation | Nylon |
| Color | Red |
| Type | Butted Seam |
| Max Electrical Rating | 105 o C |
| Max Electrical Voltage | 600 Volts |
| T | 0.7mm (0.03") |
| L | 28.8mm (1.10") |
| F | 14.0mm (0.55") |
| E | 11.0mm (0.43") |
| W | 3.0mm (0.16") |
| D | 4.0mm (0.16") |
| D1 | 1.7mm (0.07") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Pin Length | 14 mm |
Drawings and product details
