Technical reference

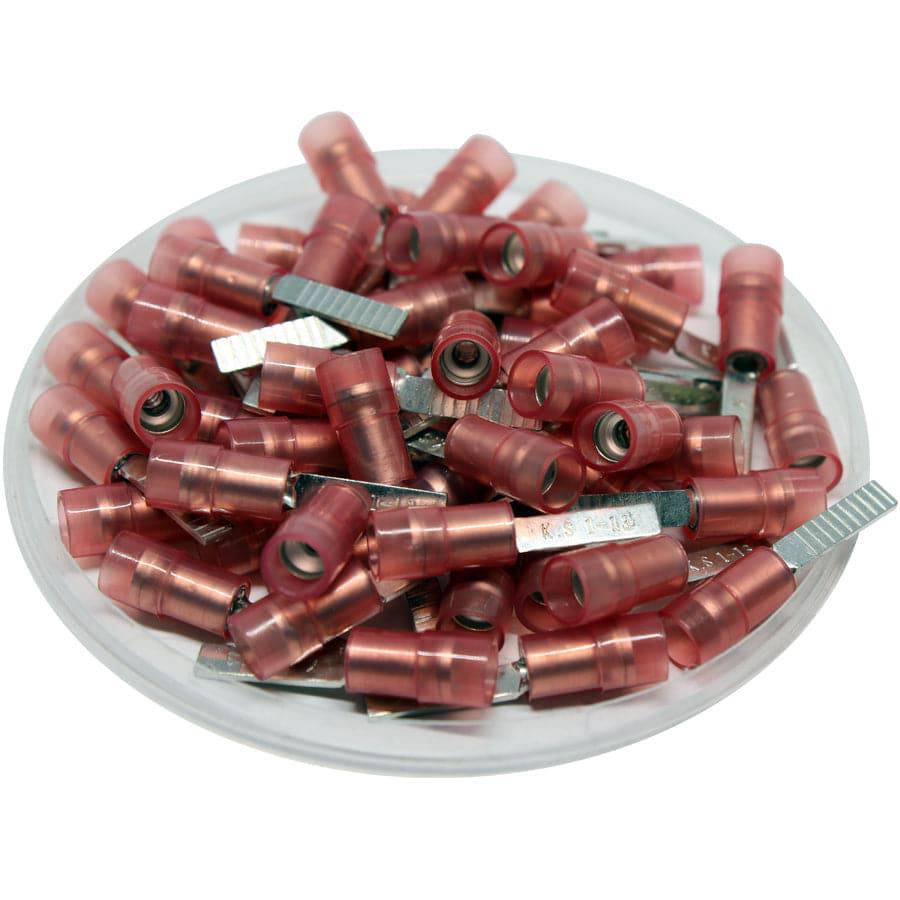

Procurement reference model: DBNYD1-13. Wire Range: 22-16AWG; Terminal Material: Tin-Plated Copper; Insualtion Material: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16AWG |
| Terminal Material | Tin-Plated Copper |
| Insualtion Material | Nylon |
| Color | Red |
| Maximum Rating | 600 Volts - 105 o C |
| Max Electrical Rating | 18AMP |
| T | 0.75mm (0.03") |
| L | 23.8mm (0.94") |
| F | 13.0mm (0.51") |
| E | 11.0mm (0.43") |
| W | 3.0mm (0.12") |
| D | 4.0mm (0.16") |
| D1 | 1.7mm (0.07") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Pin Length | 13 mm |
Drawings and product details
