Technical reference

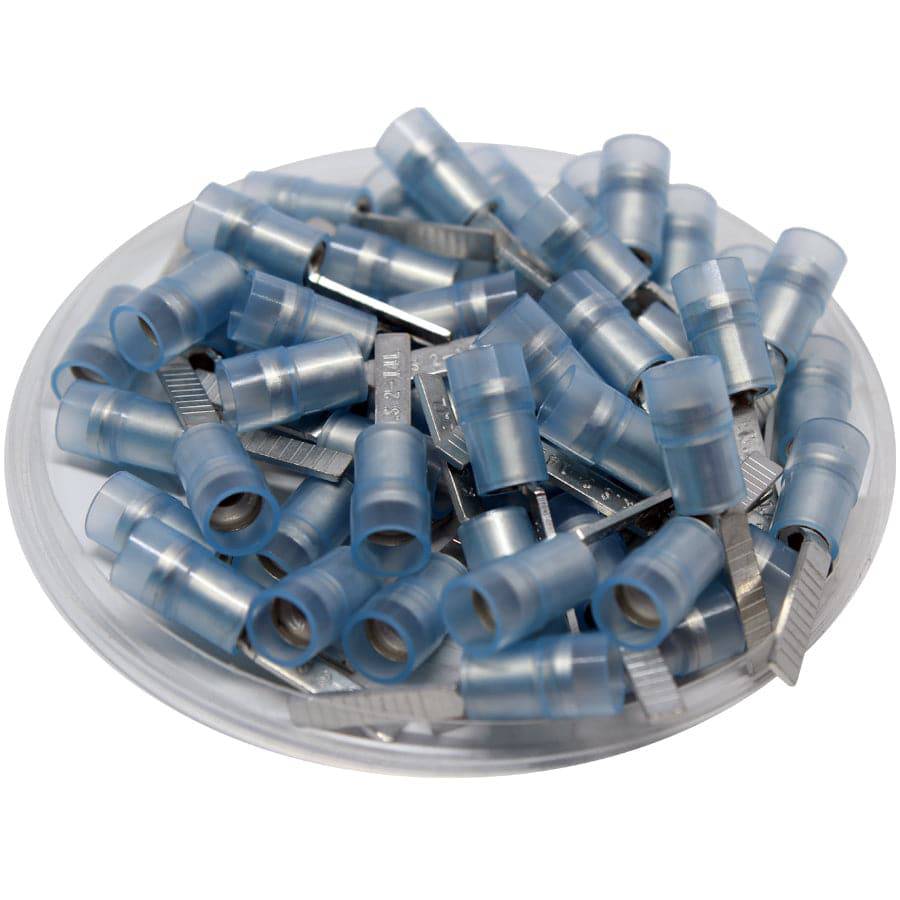

Procurement reference model: DBNYDL2-14. Wire Range: 16-14AWG; Insulation: Nylon; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14AWG |
| Insulation | Nylon |
| Color | Blue |
| Seam | Butted |
| Maximum Rating | 600 Volts - 105 o C |
| Max Electrical Rating | 30AMP |
| T | 0.8mm (0.03") |
| L | 24.8mm (0.98") |
| F | 14.0mm (0.55") |
| E | 11.0mm (0.43") |
| W | 3.0mm (0.12") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Pin Length | 14 mm |
Drawings and product details
