Technical reference

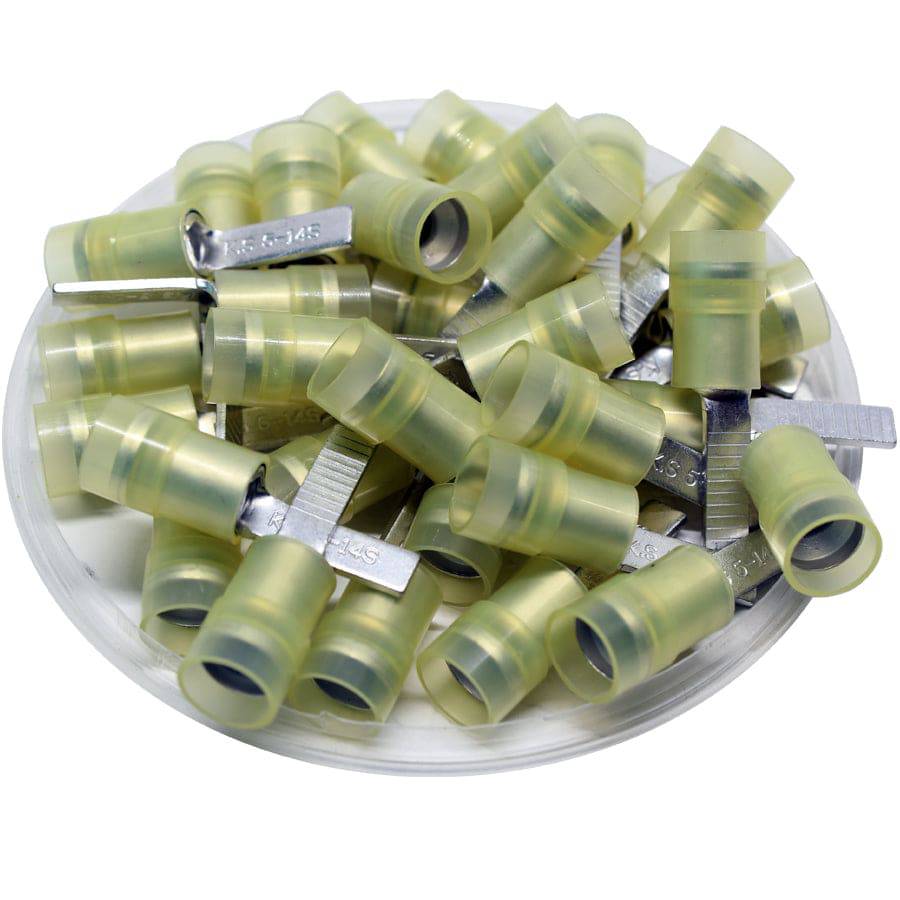

Procurement reference model: DBNYDS5-14. Wire Range: 12-10AWG; Insulation: Nylon; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Range | 12-10AWG |
| Insulation | Nylon |
| Color | Yellow |
| Seam | Butted |
| Maximum Rating | 600 Volts - 105 o C |
| T | 1.0mm (0.04") |
| L | 27.0mm (1.10") |
| F | 14.0mm (0.55") |
| E | 13.0mm (0.51") |
| W | 4.0mm (0.16") |
| D | 7.0mm (0.28") |
| D1 | 3.4mm (0.13") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Pin Length | 14 mm |
