Technical reference

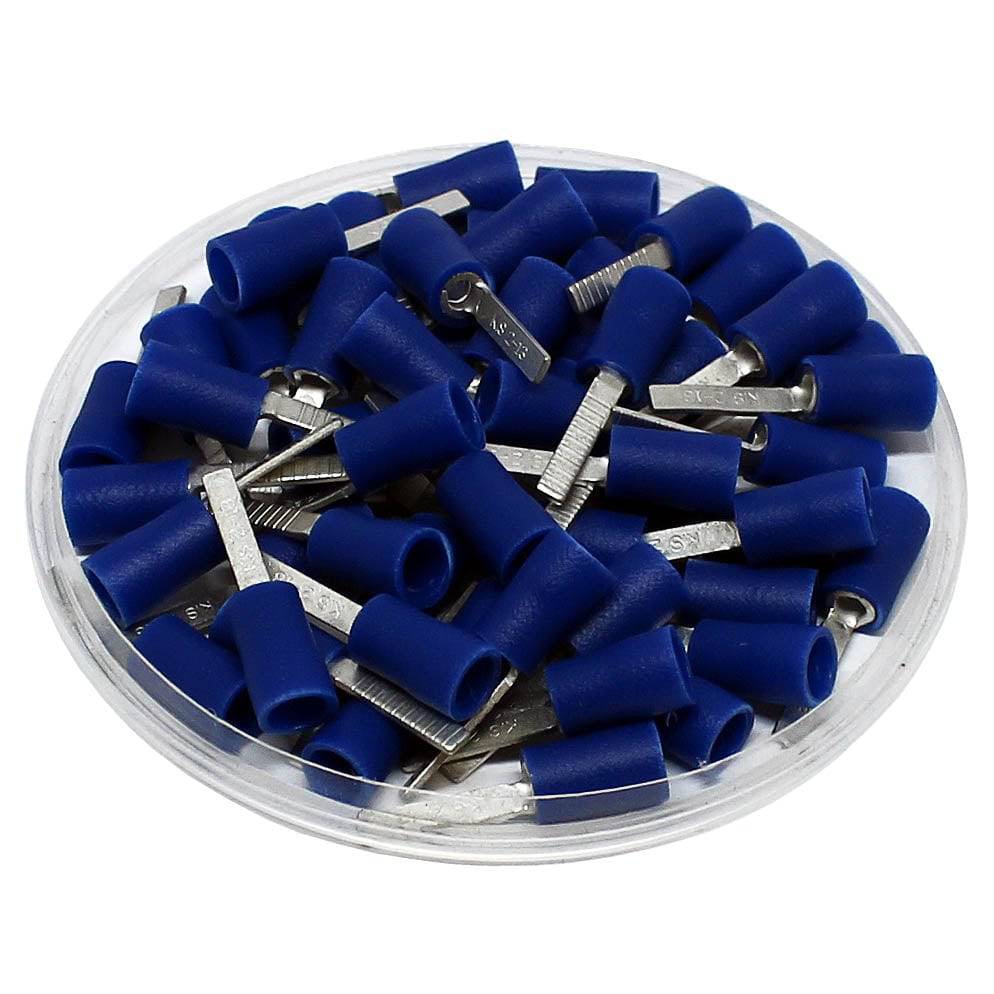

Procurement reference model: DBV2-13. Wire Size: 16-14 AWG; T: 0.8mm (0.03"); L: 22.8mm (0.90"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| T | 0.8mm (0.03") |
| L | 22.8mm (0.90") |
| F | 13mm (0.51") |
| E | 11.5mm (0.45") |
| W | 2.4mm (0.09") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 30AMP |
| Material | Tin-Plated Copper |
| Insulation | Vinyl |
| Color | Blue |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
