Technical reference

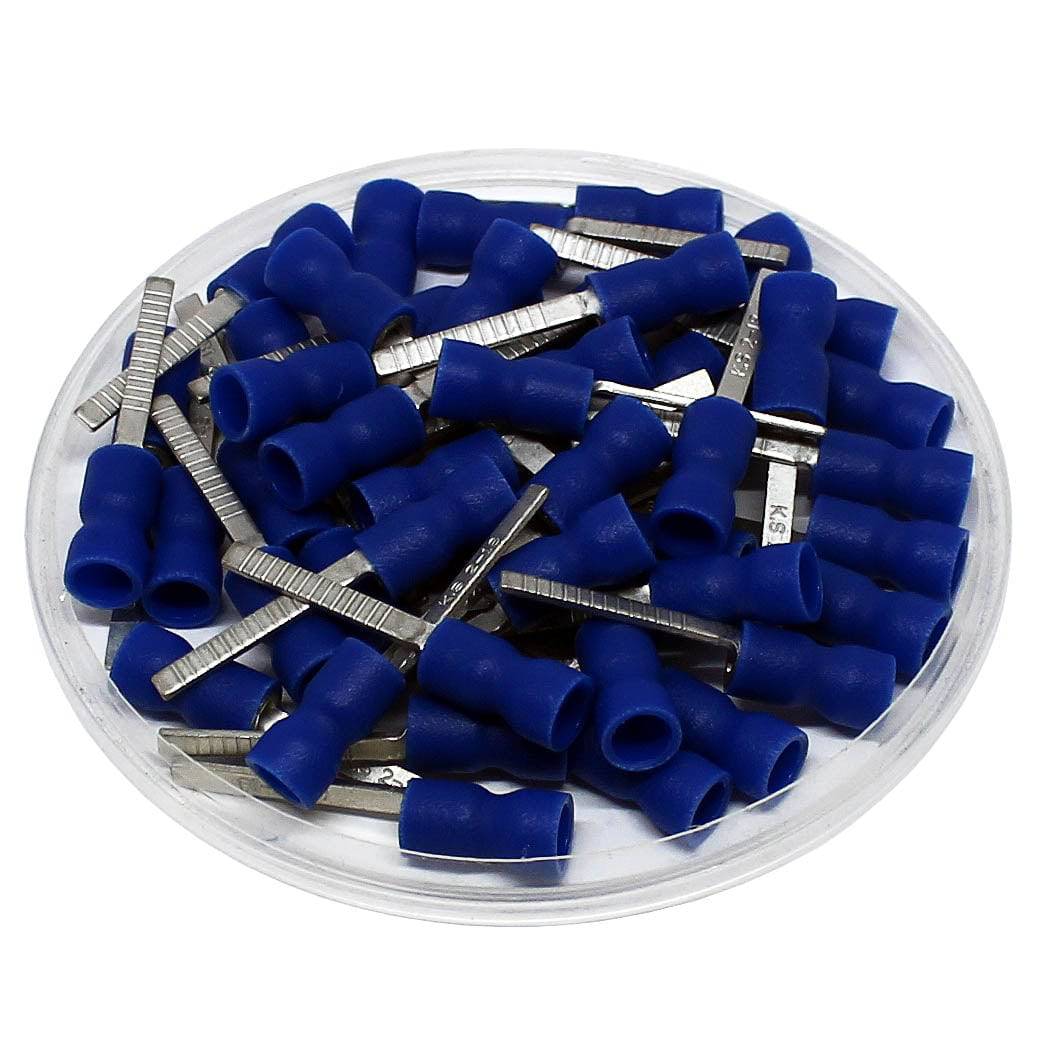

Procurement reference model: DBVE2-18. Wire Range: 16-14 AWG; Terminal Material: Tin-Plated Copper; Insulation: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| Terminal Material | Tin-Plated Copper |
| Insulation | Vinyl |
| Seam | Butted |
| Color | Blue |
| Max Electrical Rating | 105 o C |
| Max Electrical Voltage | 600 Volts |
| Max Electrical Current | 30AMP |
| T | 0.8mm (0.03") |
| L | 29.3mm (1.15") |
| F | 18.0mm (0.71") |
| E | 11.5mm (0.45") |
| W | 2.2mm (0.09") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Pin Length | 18 mm |
