Technical reference

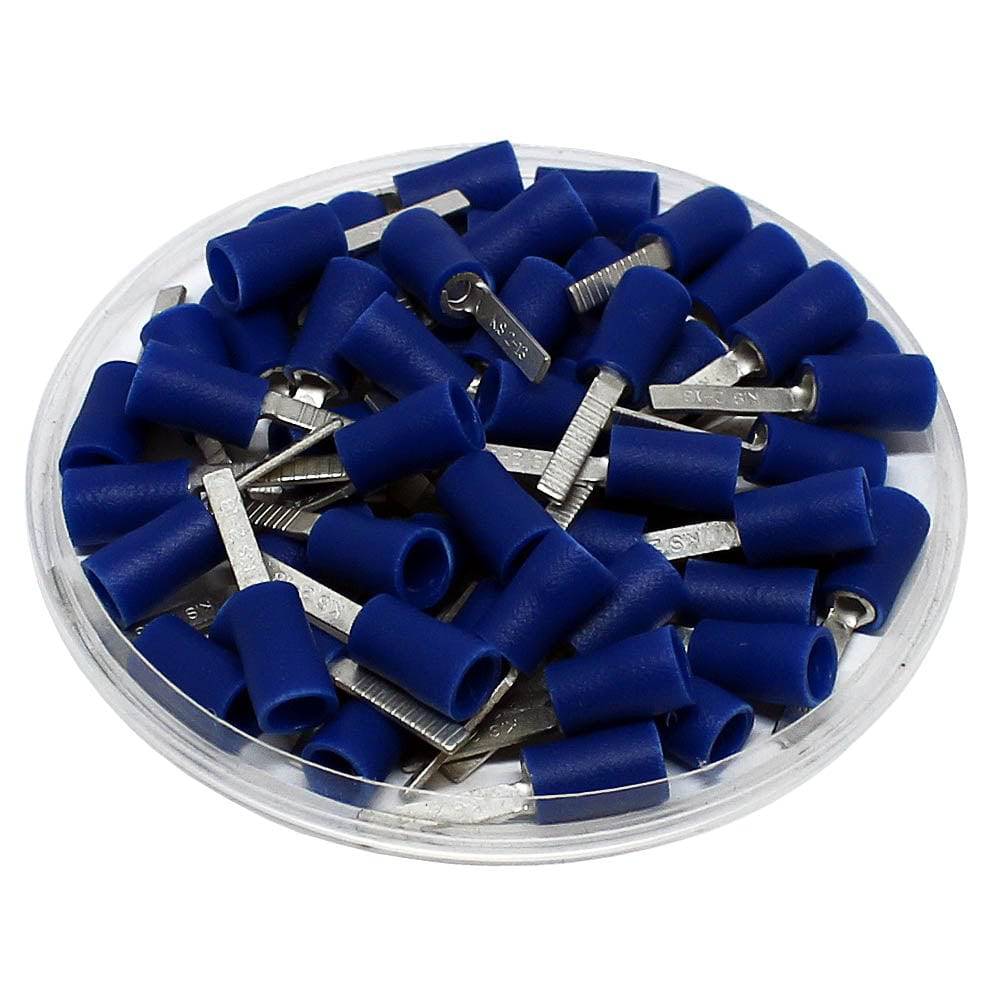

Procurement reference model: DBVL2-13. Wire Range: 16-14 AWG; T: 0.8mm (0.03"); L: 22.8mm (0.90"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| T | 0.8mm (0.03") |
| L | 22.8mm (0.90") |
| F | 13.0mm (0.51") |
| E | 10.0mm (0.39") |
| W | 3.0mm (0.12") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Vinyl |
| Color | Blue |
| Seam | Butted |
| Temperature Rating | 105 o C |
| Voltage Rating | 600 Volts |
| Max AMP Rating | 30 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
