Technical reference

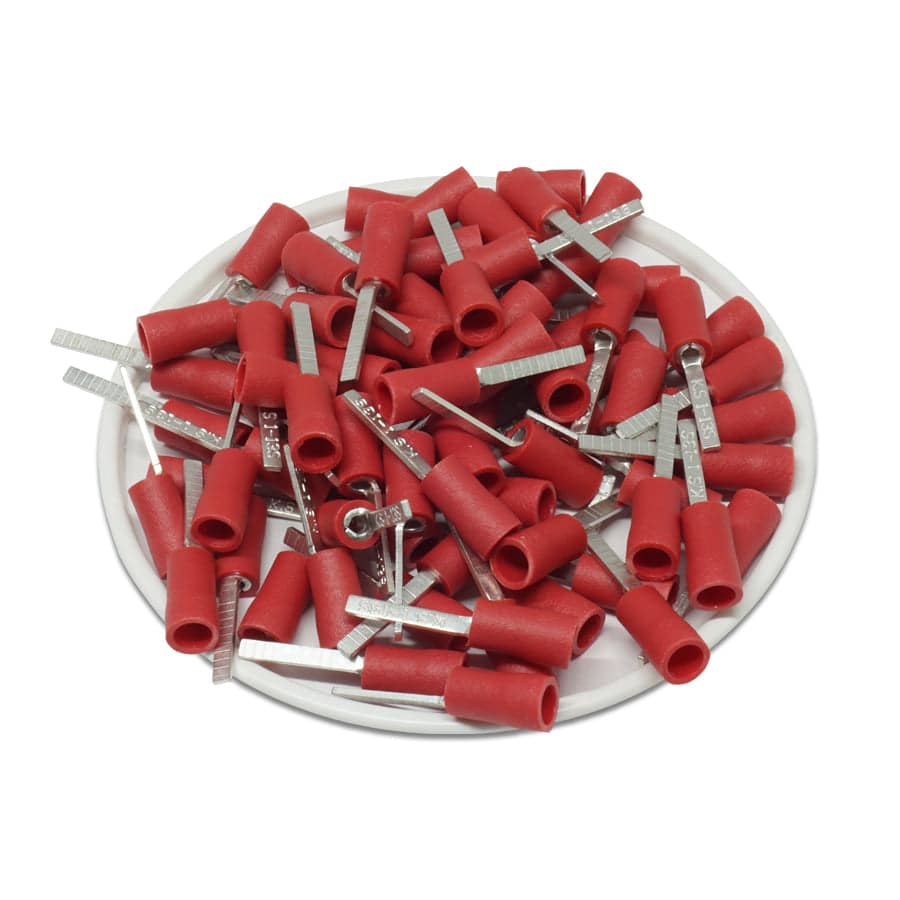

Procurement reference model: DBVS1-13. Wire Ranger: 22-16 AWG; W: 1.9mm (0.07"); F: 13mm (0.51"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Ranger | 22-16 AWG |
| W | 1.9mm (0.07") |
| F | 13mm (0.51") |
| L | 22.8mm (0.89") |
| E | 10mm (0.39") |
| D | 4mm (0.15") |
| D1 | 1.7mm (0.06") |
| T | 0.75mm (0.03") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Color | Red |
| Seam | Butted |
| Maximum Rating | 600 Volts (105 o C) |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
