Technical reference
Procurement reference model: FC-0605. Color: Natural; L: 19.0mm (0.75"); L1: 5.9mm (0.23"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Color | Natural |
| L | 19.0mm (0.75") |
| L1 | 5.9mm (0.23") |
| W | 19.0mm (0.75") |
| W1 | 10.0mm (0.39") |
| H | 7.2mm (0.28") |
| H1 | 4.9mm (0.19") |
| Material | UL Approved Nylon 94UV-2 |
| Environment | Indoors |
| Service Temperature | -40°F to 185°F |
| Flammability Rating | V-2 |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

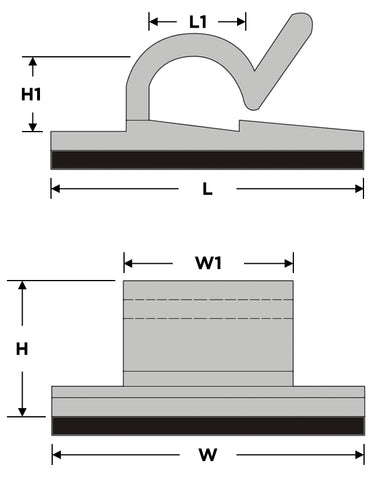

Drawings and product details
