Technical reference

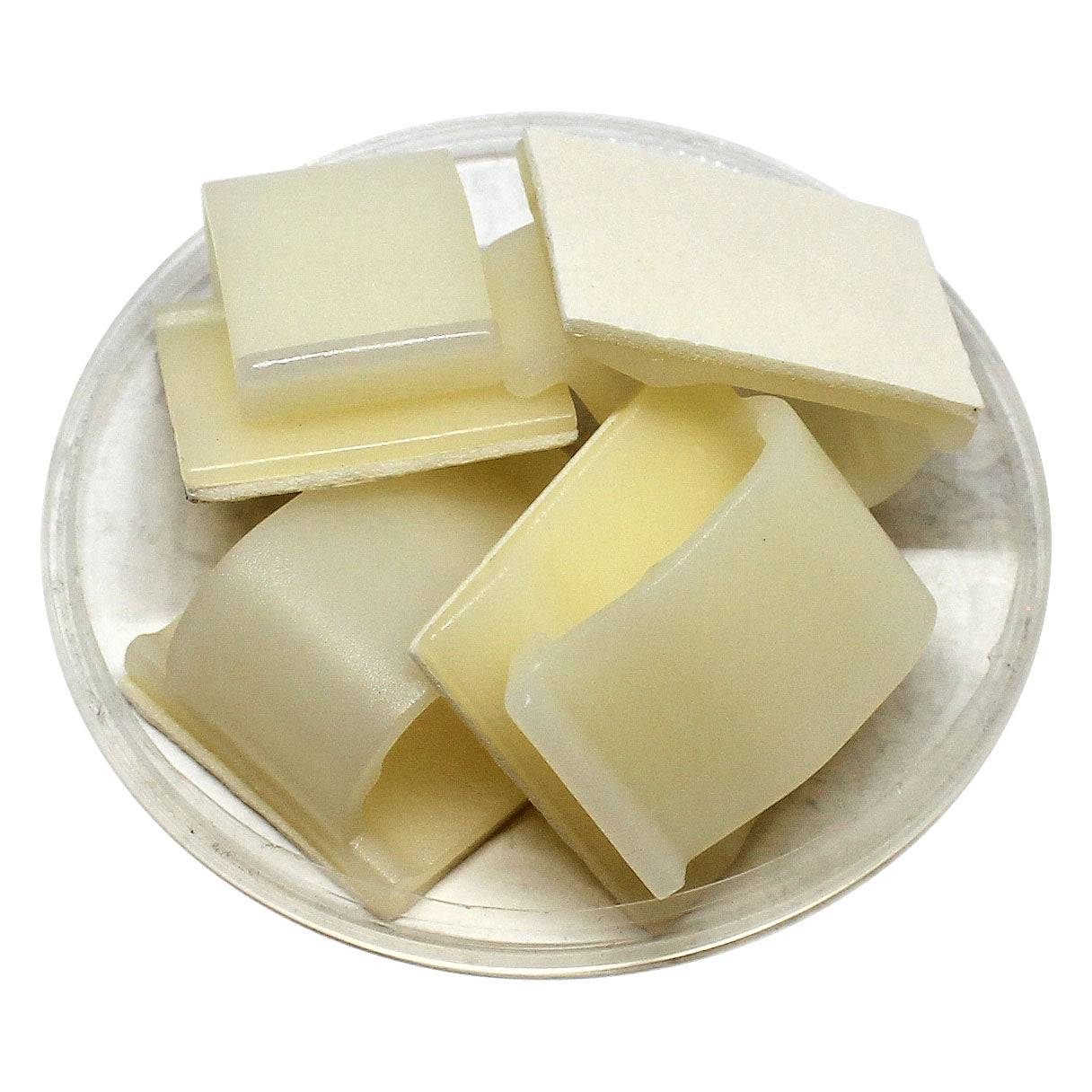

Procurement reference model: FC-2211. Color: Natural; L: 33.3mm (1.31"); L1: 22.2mm (0.87"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Color | Natural |
| L | 33.3mm (1.31") |
| L1 | 22.2mm (0.87") |
| W | 28.3mm (1.11") |
| W1 | 18.7mm (0.74") |
| H | 15.2mm (0.60") |
| H1 | 11.1mm (0.44") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°C) |
| Flammability Rating | V-2 |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

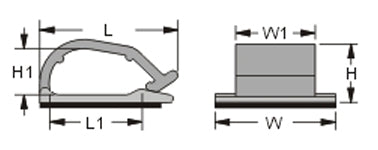

Drawings and product details
