Technical reference

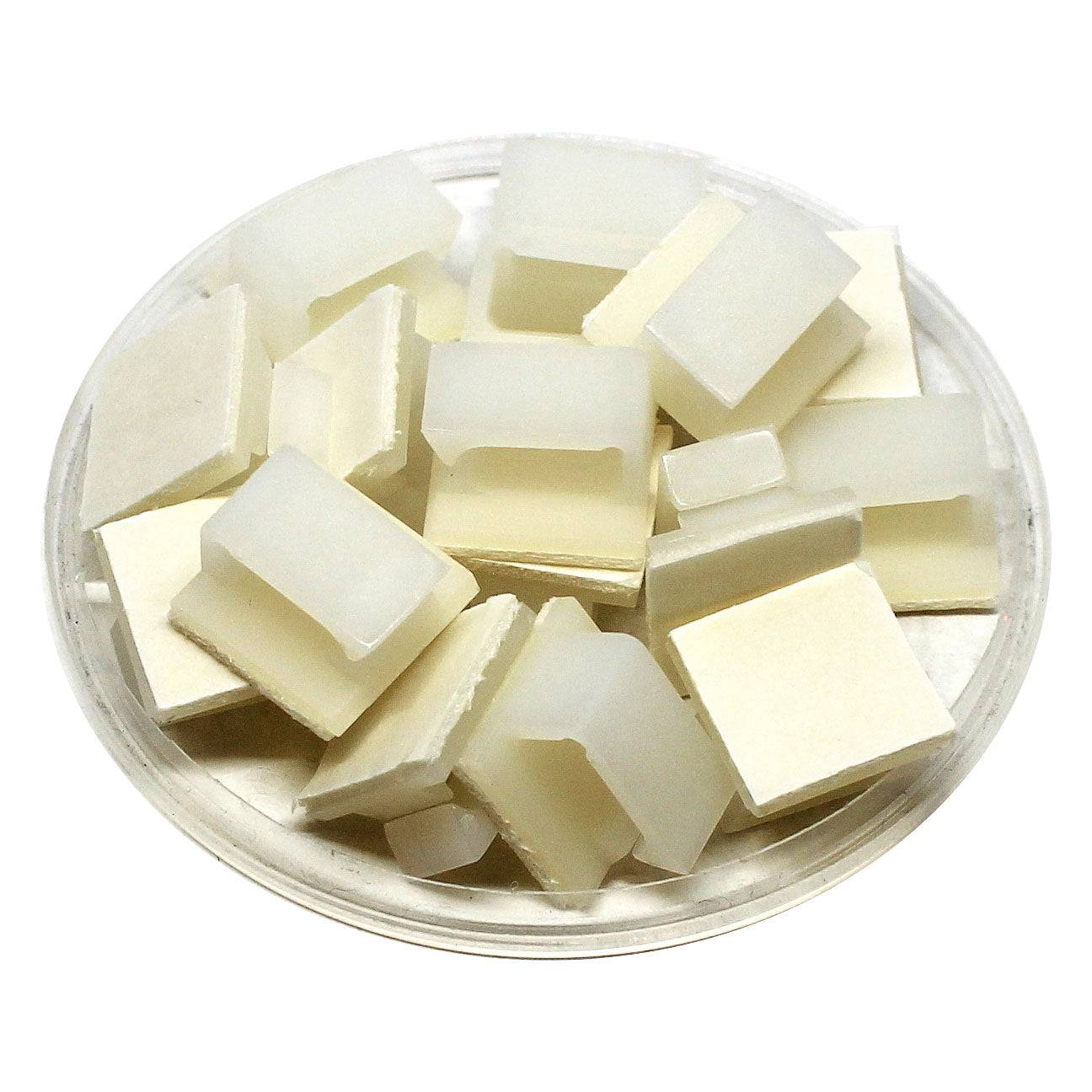

Procurement reference model: FC-1206. Color: Natural; L: 16mm (0.63"); L1: 11.9mm (0.47"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Color | Natural |
| L | 16mm (0.63") |
| L1 | 11.9mm (0.47") |
| W | 15.8mm (0.61") |
| W1 | 8.9mm (0.35") |
| H | 9.0mm (0.35") |
| H1 | 5.8mm (0.23") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°C) |
| Flammability Rating | V-2 |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

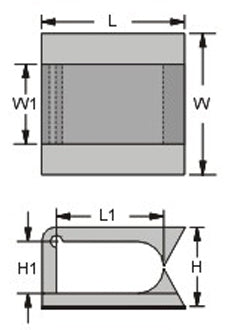

Drawings and product details
