Technical reference
Procurement reference model: FC-1208. Color: Natural; L: 26.8mm (1.06"); L1: 11.9mm (0.47"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Color | Natural |
| L | 26.8mm (1.06") |
| L1 | 11.9mm (0.47") |
| W | 26.5mm (1.04") |
| W1 | 12.3mm (0.48") |
| H | 11.7mm (0.46") |
| H1 | 8.3mm (0.33") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°C) |
| Flammability Rating | V-2 |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

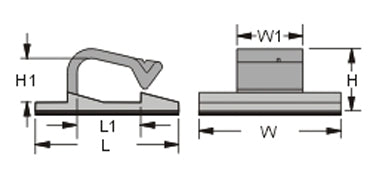

Drawings and product details
