Technical reference

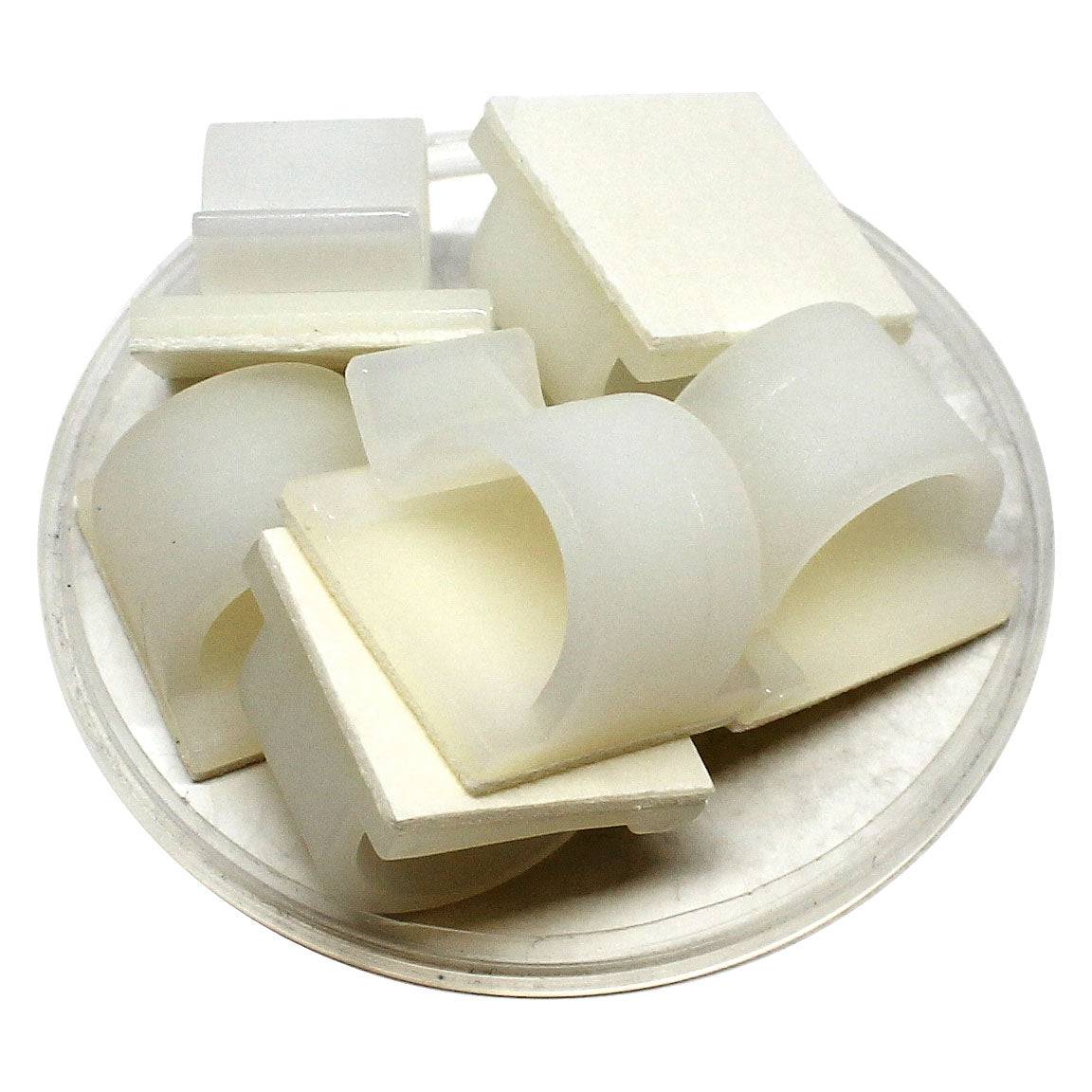

Procurement reference model: FC-1813. Color: Natural; L: 25.6mm (1"); L1: 17.8mm (0.7"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Color | Natural |
| L | 25.6mm (1") |
| L1 | 17.8mm (0.7") |
| W | 25.5mm (1") |
| W1 | 15.8mm (0.62") |
| H | 17.2mm (0.68") |
| H1 | 13.3mm (0.52") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°C) |
| Flammability Rating | V-2 |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

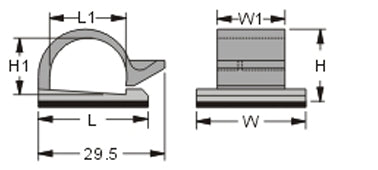

Drawings and product details
