Technical reference

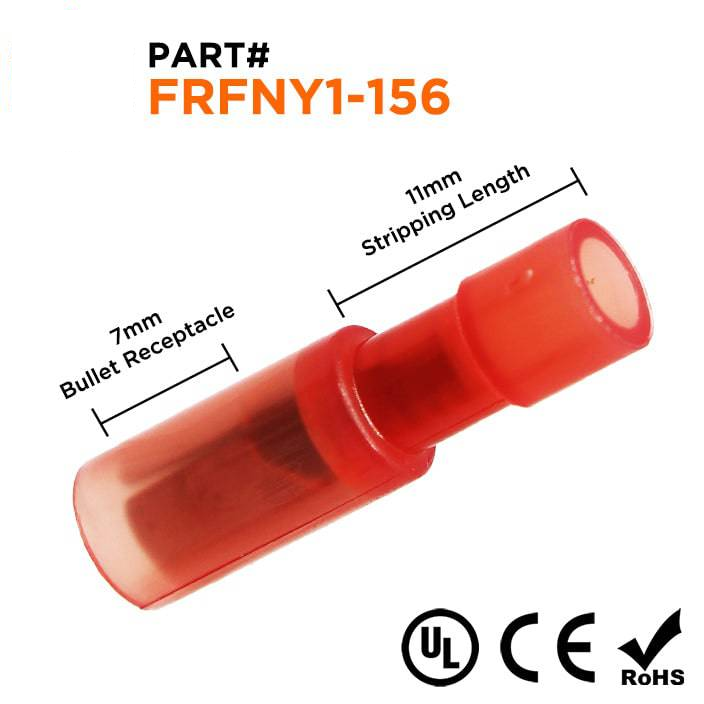

Procurement reference model: FRFNY1-156. Wire Range: 22-16 AWG; W: 3.9mm (0.154"); F: 7.0mm (0.276"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| W | 3.9mm (0.154") |
| F | 7.0mm (0.276") |
| L | 25.2mm (0.992") |
| B | 11.0mm (0.433") |
| D | 4.0mm (0.157") |
| C | 1.7mm (0.07") |
| T | 0.4mm (0.016") |
| Terminal Material | Brass |
| Insulation Material | Nylon |
| Insulation Color | Red |
| Temperature Rating | 105°C - 600 Volts |
| Max AMP Rating | 10 AMP |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
