Technical reference

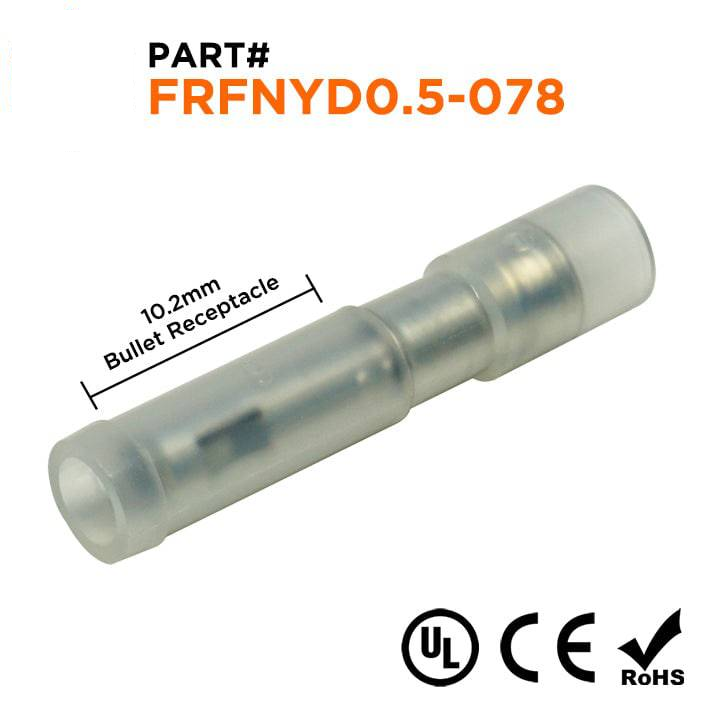

Procurement reference model: FRFNYD05-078. Wire Range: 22-16 AWG; Color: Clear; W: 2.05mm (0.081"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| Color | Clear |
| W | 2.05mm (0.081") |
| F | 10.0mm ( 0.394" ) |
| L | 24.8mm ( 0.976" ) |
| B | 11.0mm ( 0.433" ) |
| D | 3.5mm ( 0.138" ) |
| T | 0.3mm ( 0.012" ) |
| Terminal Material | Brass |
| Insulation Material | Nylon |
| Temperature Rating | 105°C - 600 Volts |
| Max AMP Rating | 7 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
