Technical reference

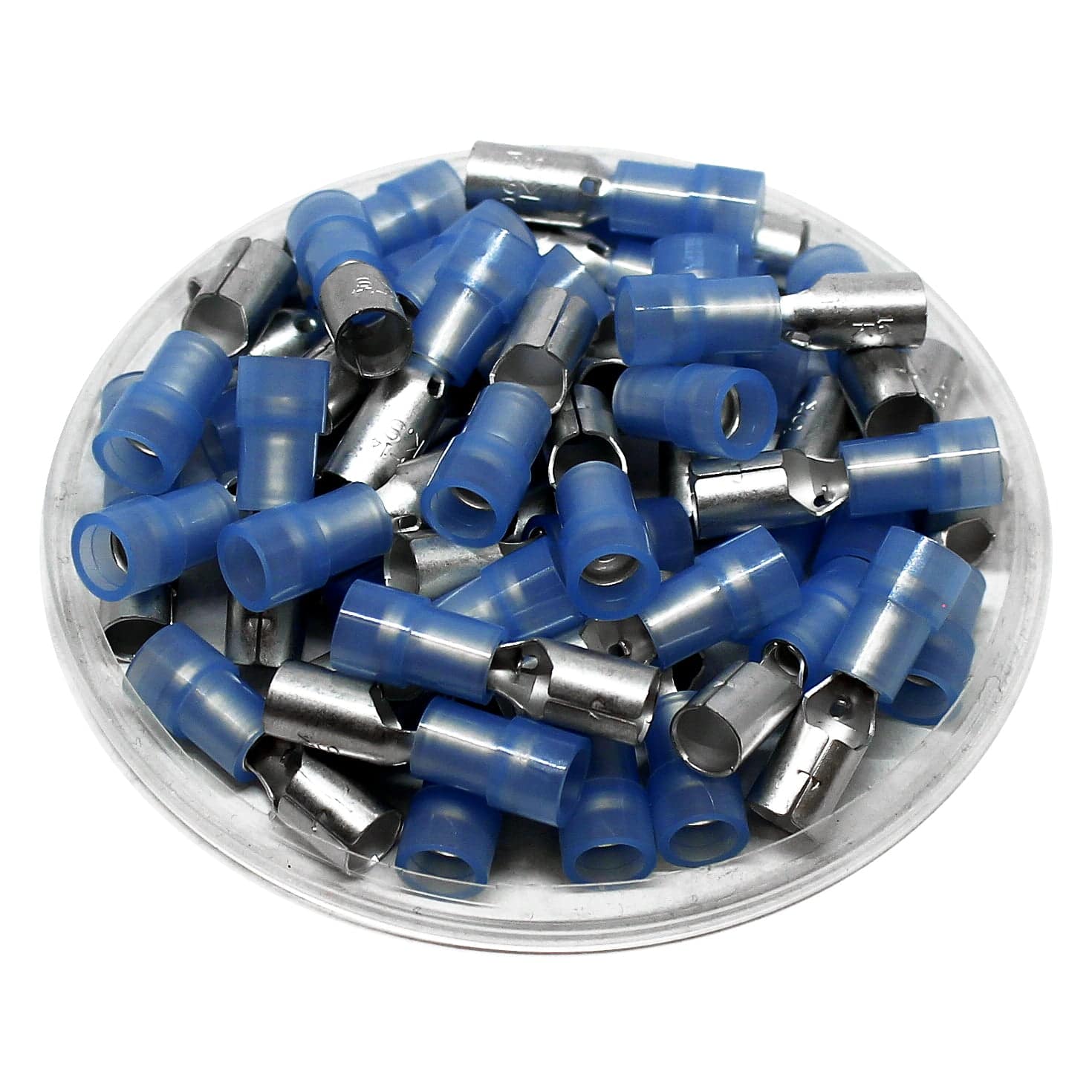

Procurement reference model: FRSNY2-180. Wire Range: 16-14 AWG; C: 0.09" (2.3mm); L: 0.89" (22.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| C | 0.09" (2.3mm) |
| L | 0.89" (22.5mm) |
| F | 0.28" (7.0mm) |
| B | 0.43" (11.0mm) |
| W | 0.18" (4.5mm) |
| D | 0.18" (4.5mm) |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Nylon |
| Insulation Color | Blue |
| Temperature Rating | 105 o C - 600 Volts |
| Max AMP Rating | 15 AMP |
| UL Recgonized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
