Technical reference

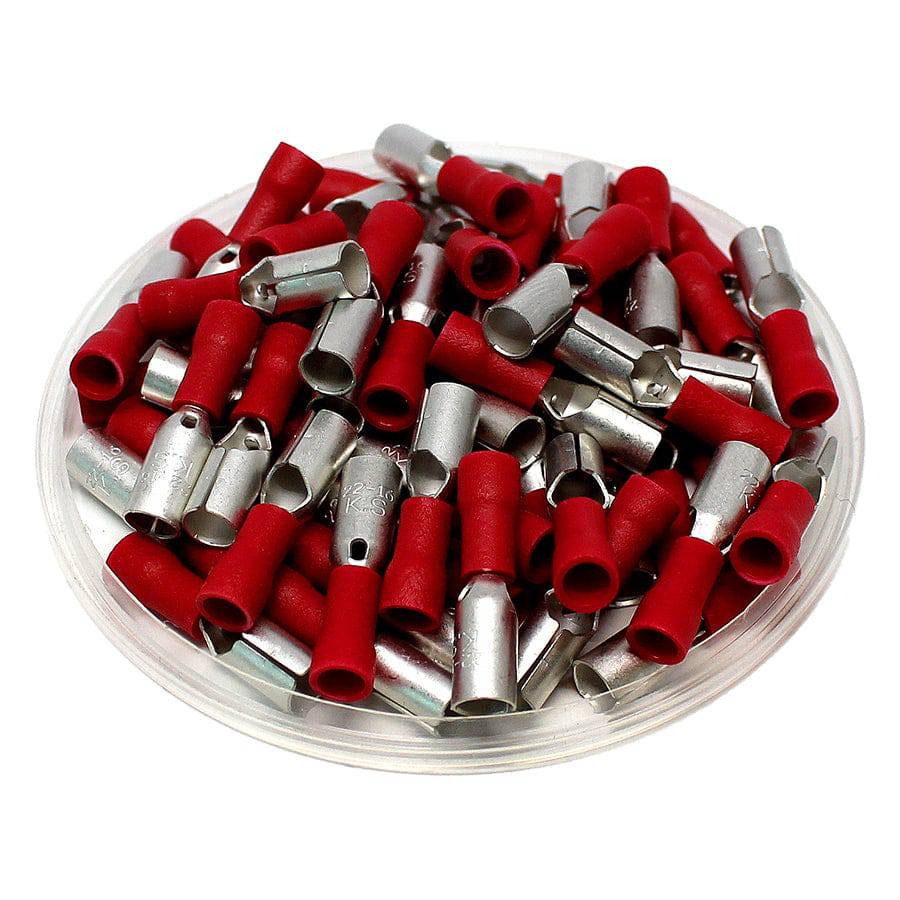

Procurement reference model: FRSV1-156. Wire Range: 22-16 AWG; C: 0.07" (1.7mm); L: 0.89" (22.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| C | 0.07" (1.7mm) |
| L | 0.89" (22.5mm) |
| F | 0.28" (7.0mm) |
| B | 0.43" (11.0mm) |
| W | 0.15" (3.9mm) |
| D | 0.16" (4.0mm) |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Vinyl |
| Insulation Color | Red |
| Temperature Rating | 105 o C |
| Max AMP Rating | 10 AMP |
| UL Recgonized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
