Technical reference

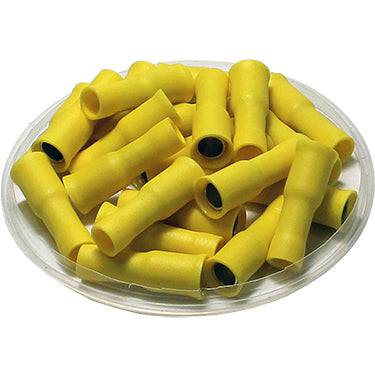

Procurement reference model: FRV5-195. Wire Range: 12-10 AWG; W: 0.19" (4.9mm); F: 0.27" (7.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 12-10 AWG |
| W | 0.19" (4.9mm) |
| F | 0.27" (7.0mm) |
| L | 0.94" (24.0mm) |
| B | 0.49" (12.5mm) |
| D | 0.21" (5.5mm) |
| T | 0.02" (0.45mm) |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Viny |
| Insulation Color | Yellow |
| Temperature Rating | 105 o C - 600 Volts |
| Max AMP Rating | 24 AMP |
| UL Recgonized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
