Technical reference

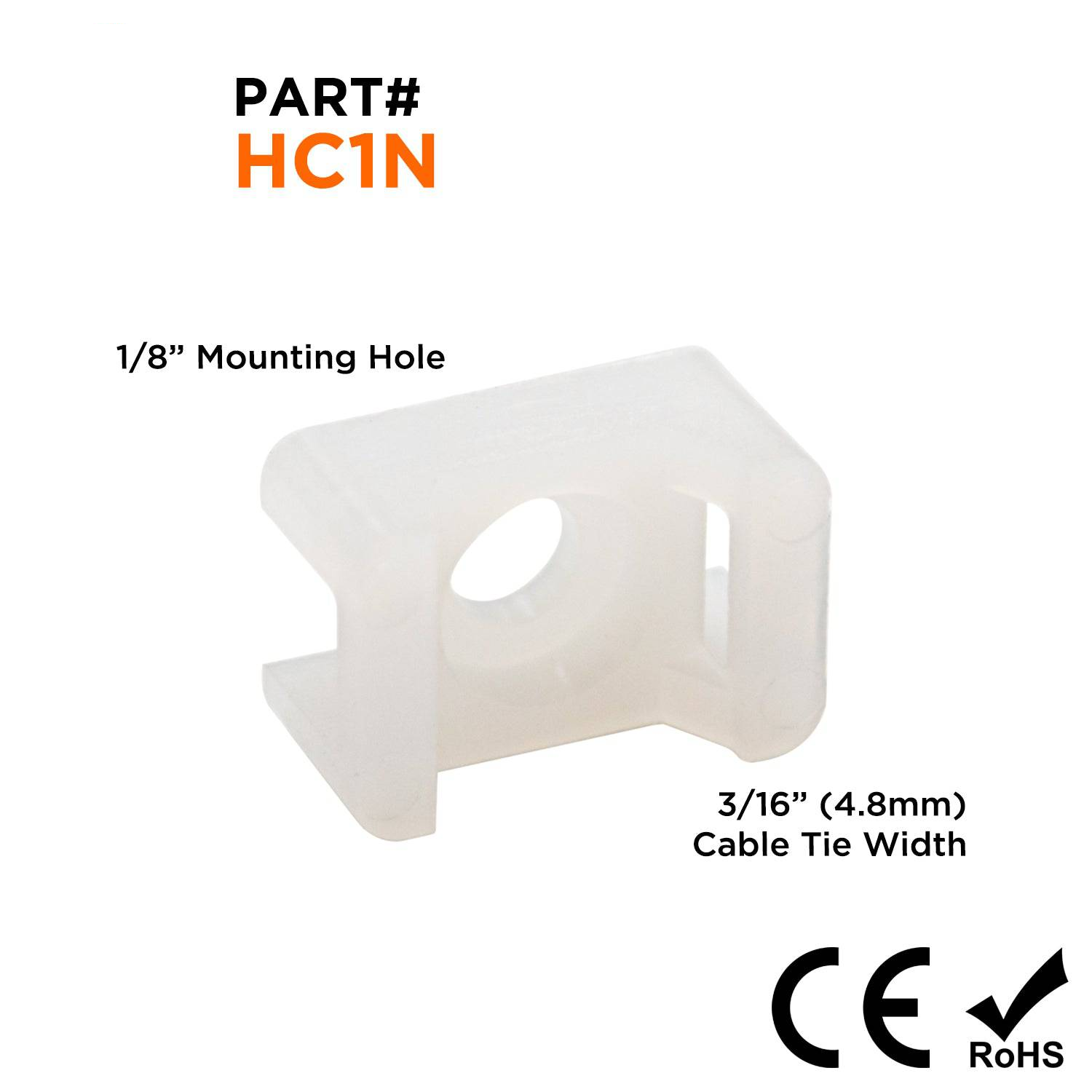

Procurement reference model: HC1N. Size (LxWxH): 0.59 x 0.39 x 0.28"; Color: Natural; H: 7mm (0.28"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size (LxWxH) | 0.59 x 0.39 x 0.28" |
| Color | Natural |
| H | 7mm (0.28") |
| L | 15mm (0.59") |
| W | 10mm (0.39") |
| T (Cable Tie Slot Width) | 5.2mm (0.20") |
| B (Fixed Hole Size) | 3.5mm (0.14") |
| Mounting | Screw Mounted |
| Material | UL Approved 94UV-2 Nylon |
| Environment | Indoor |
| Flammability (Fire Rating) | UL 94V-2 |
| Gamma Radiation | 1x10 Rads |
| Temp Rating | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized | No |
| RoHS Compliant | Yes |
| CE Certified | Yes |
Drawings and product details
