Technical reference

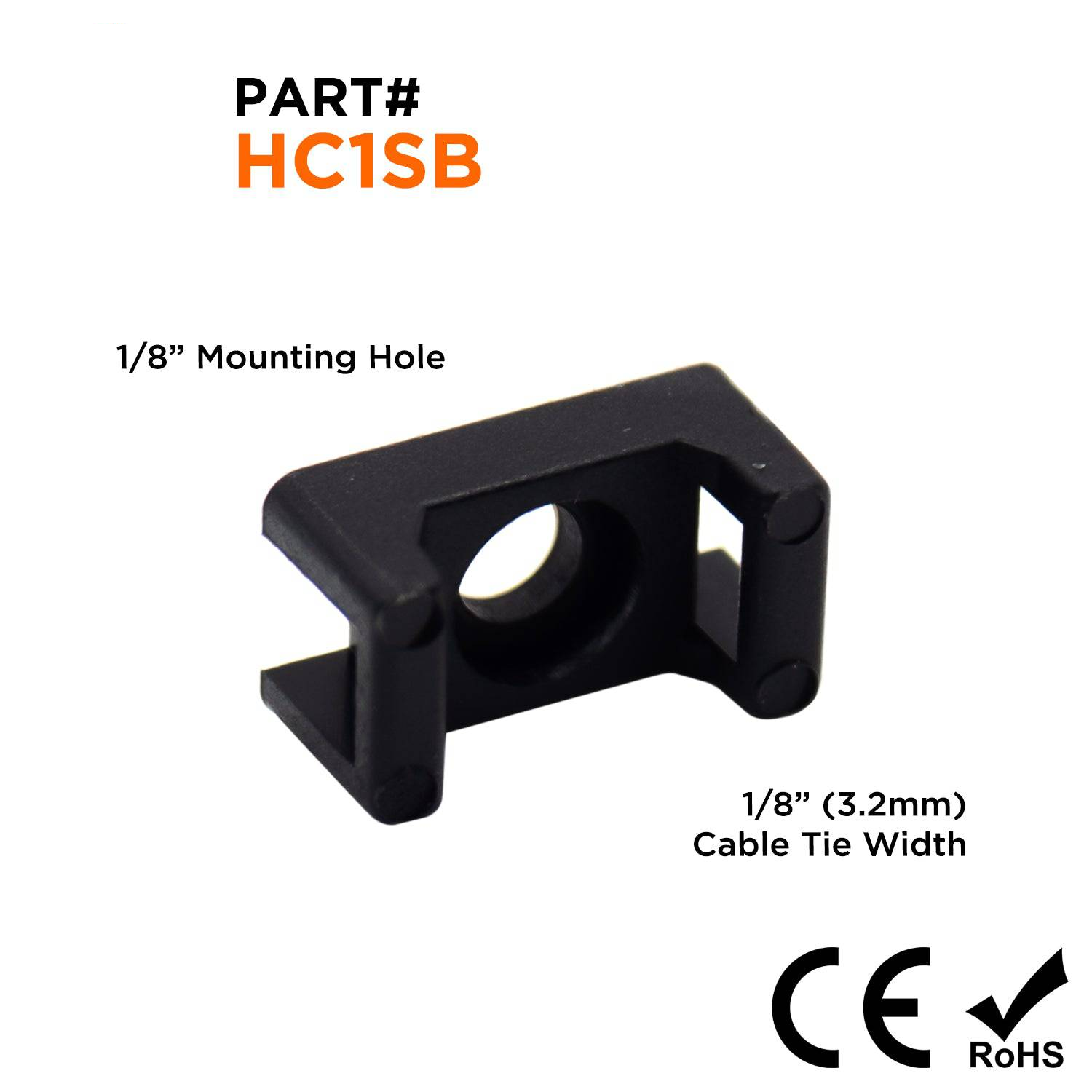

Procurement reference model: HC1SB. Size (LxWxH): 0.50 x 0.28 x 0.22"; Color: Black; H: 5.7mm (0.22"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size (LxWxH) | 0.50 x 0.28 x 0.22" |
| Color | Black |
| H | 5.7mm (0.22") |
| L | 12.6mm (0.50") |
| W | 7mm (0.28") |
| T (Cable Tie Slot Width) | 3.8mm (0.13") |
| B (Fixed Hole Size) | 3.3mm (0.13") |
| Mounting | Screw Mounted |
| Material | UL Approved 94UV-2 Nylon |
| Environment | Indoor |
| Flammability | UL 94V-2 |
| Gamma Radiation | 1x10 Rads |
| Temp Rating | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized | No |
| RoHS Compliant | Yes |
| CE Certified | Yes |
Drawings and product details
