Technical reference

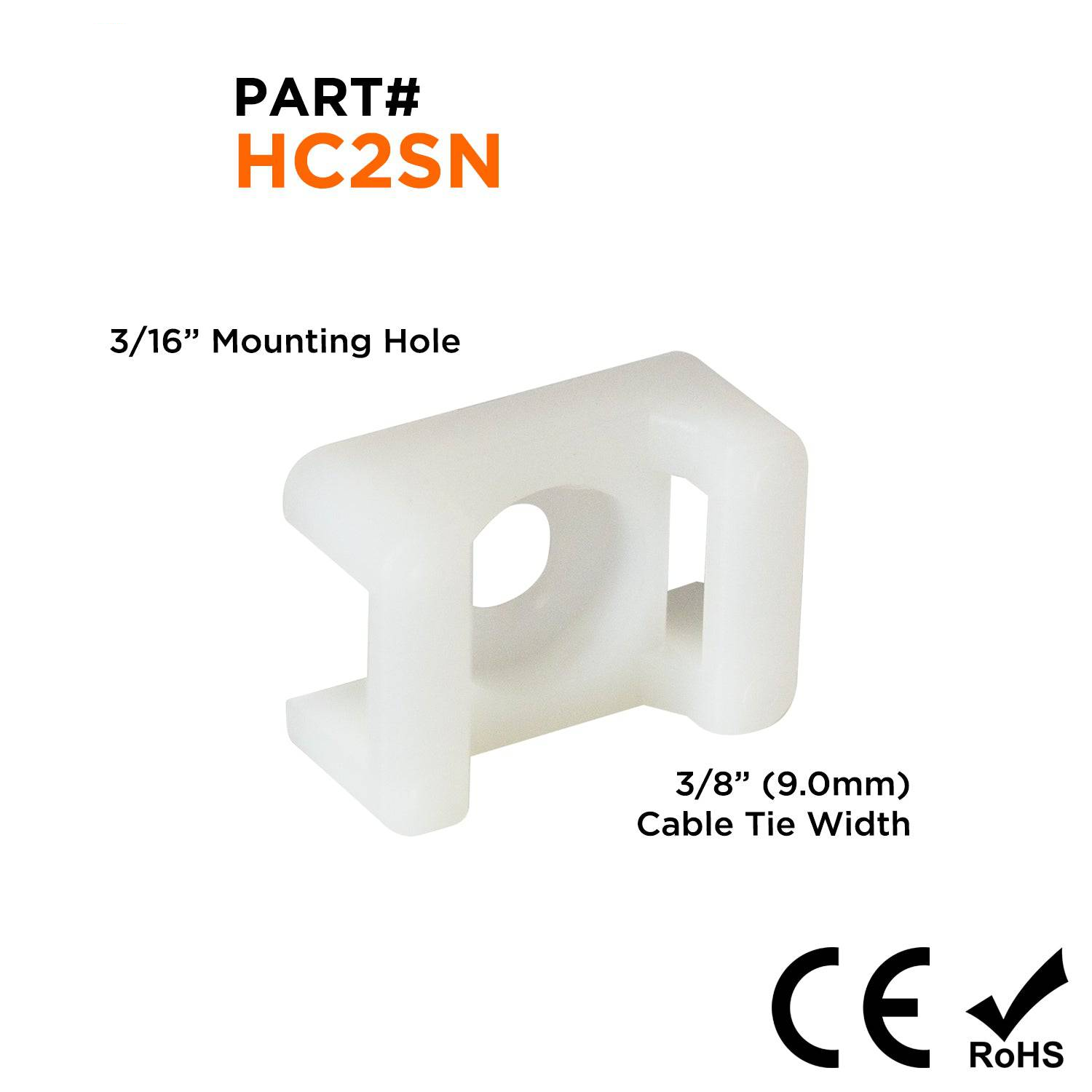

Procurement reference model: HC2SN. Size (LxWxH): 0.91 x 0.63 x 0.39"; Color: Natural; L: 23mm (0.91"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size (LxWxH) | 0.91 x 0.63 x 0.39" |
| Color | Natural |
| L | 23mm (0.91") |
| W | 16mm (0.63") |
| H | 10mm (0.39") |
| T (Cable Tie Slot Width) | 9.0mm (0.35") |
| B (Fixed Hole Size) | 5.7mm (0.225") |
| Mounting | Screw Mounted |
| Material | UL Approved 94UV-2 Nylon |
| Environment | Indoor |
| Flammability (Fire Rating) | UL 94V-2 |
| Gamma Radiation | 1x10 Rads |
| Temp Rating | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized | No |
| RoHS Compliant | Yes |
| CE Certified | Yes |
Drawings and product details
