Technical reference

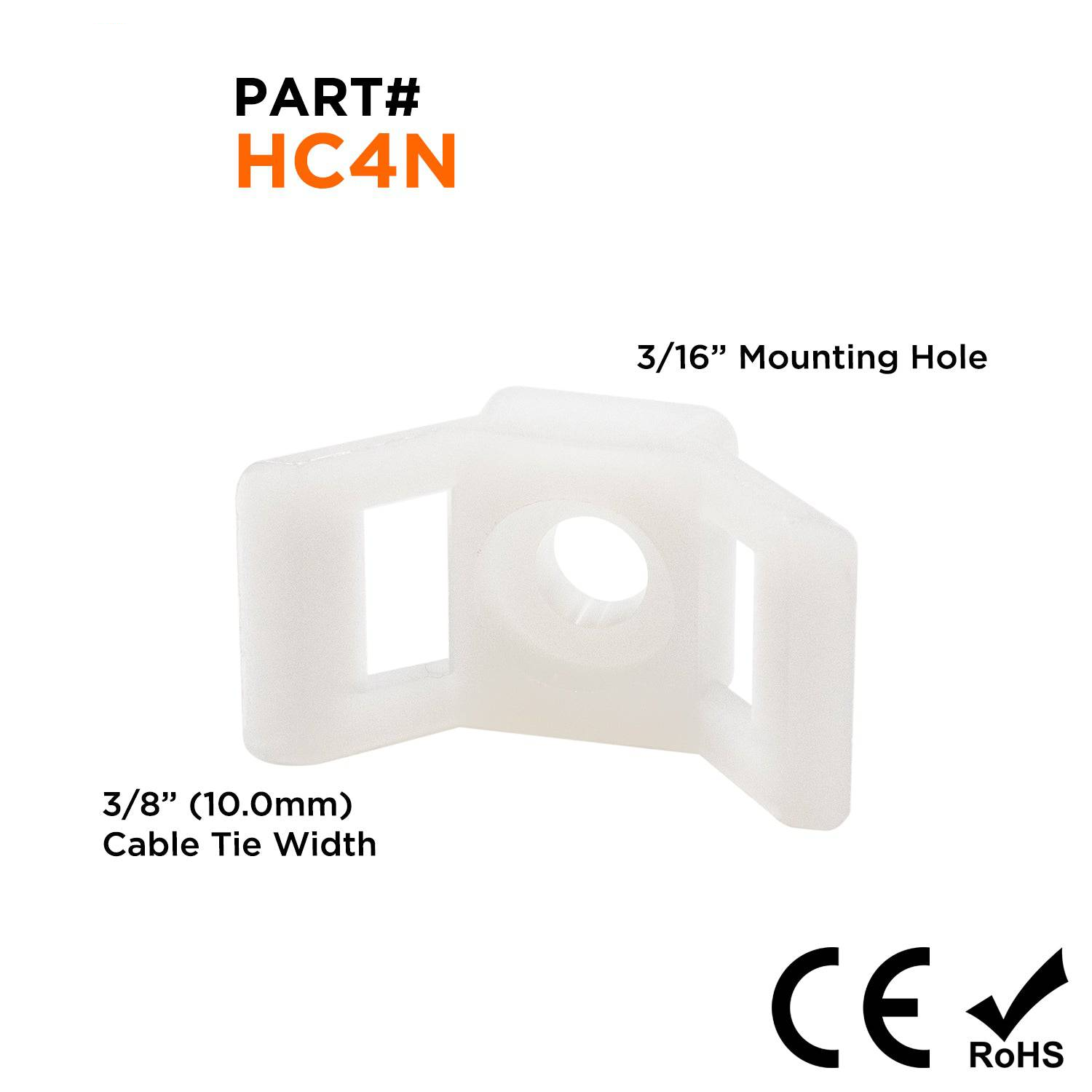

Procurement reference model: HC4N. Size (LxWxH): 1.14 x 0.59 x 0.47"; Color: Natural; H: 12mm (0.47"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size (LxWxH) | 1.14 x 0.59 x 0.47" |
| Color | Natural |
| H | 12mm (0.47") |
| L | 29mm (1.14") |
| W | 15mm (0.59") |
| T (Cable Tie Slot Width) | 10mm (0.39") |
| B (Fixed Hole Size) | 5.2mm (0.20") |
| Material | UL Approved Nylon 66, 94V-2 |
| Flammability (Fire Rating) | UL 94V-2 |
| Gamma Radiation | 1x10 Rads |
| Temp Rating | -400°F to 185°F (-240°C to 85°C) |
| UL Approved | No |
| RoHS Compliant | Yes |
| CE Certified | Yes |

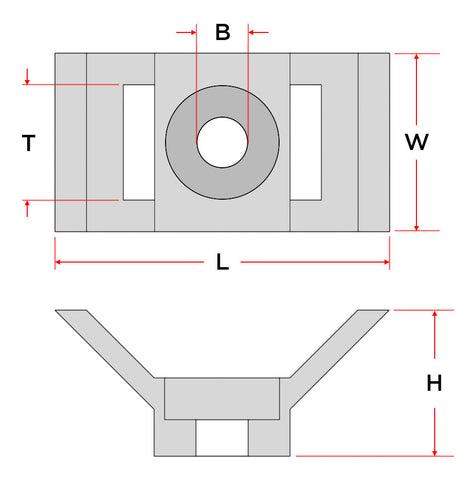

Drawings and product details
