Technical reference

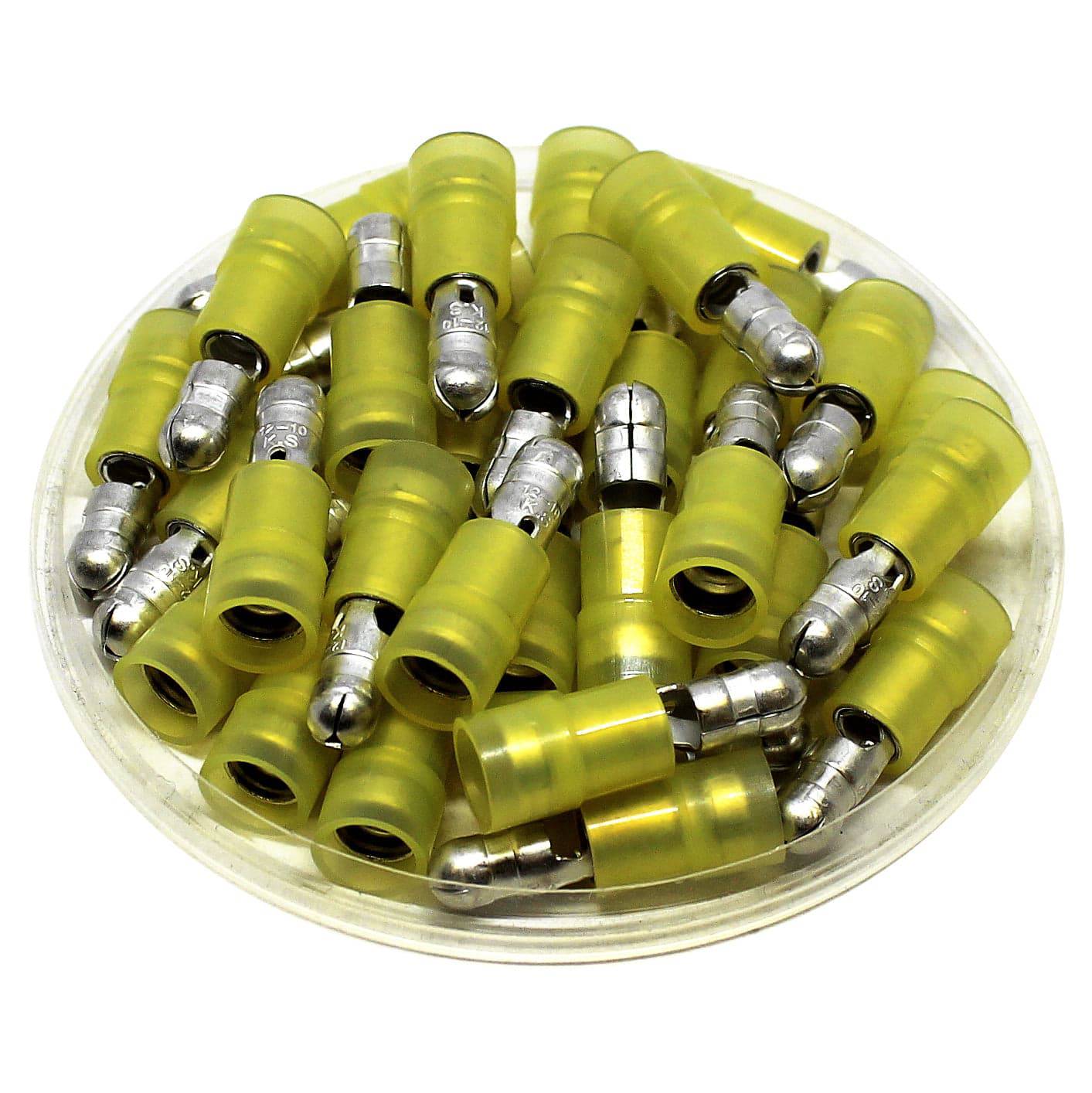

Procurement reference model: MPNYD5-195. Wire Range: 12-10 AWG; C: 0.13" (3.4mm); L: 0.89" (23.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 12-10 AWG |
| C | 0.13" (3.4mm) |
| L | 0.89" (23.5mm) |
| F | 0.34" (8.5mm) |
| B | 0.51" (13.5mm) |
| W | 0.20" (5.0mm) |
| D | 0.26" (6.5mm) |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Nylon |
| Insulation Color | Yellow |
| Temperature Rating | 105 o C |
| Max AMP Rating | 24 AMP |
| UL Recgonized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
