Technical reference

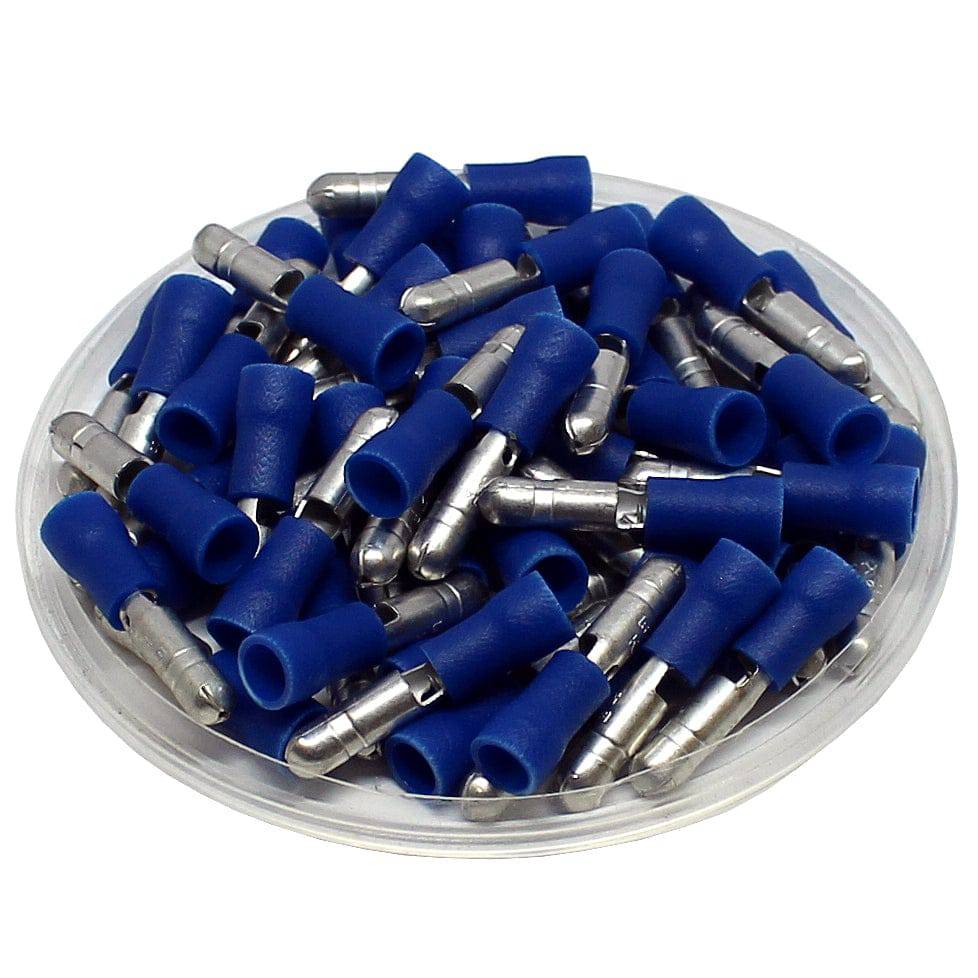

Procurement reference model: MPV2-156. Wire Range: 16-14 AWG; W: 0.16" (4.0mm); F: 0.33" (8.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| W | 0.16" (4.0mm) |
| F | 0.33" (8.5mm) |
| L | 0.82" (21.0mm) |
| B | 0.39" (10.0mm) |
| D | 0.17" (4.5mm) |
| T | 0.01" (0.4mm) |
| Terminal Material | Brass |
| Insulation Material | Vinyl |
| Insulation Color | Blue |
| Temperature Rating | 105 o C - 600 Volts |
| Max AMP Rating | 15 AMP |
| UL Recgonized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Color | Blue |
