Technical reference

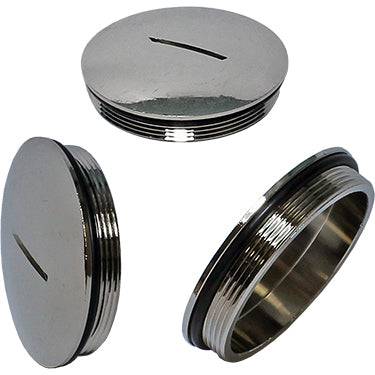

Procurement reference model: MSP1607. Thread Size: PG16; D1: 25.0m (0.984"); D2: 21.6mm (0.850"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG16 |
| D1 | 25.0m (0.984") |
| D2 | 21.6mm (0.850") |
| L1 | 6.5mm (0.26") |
| L2 | 9.5mm (0.37") |
| Material | Nickel Plated Brass |
| Protection Degree | IP54 |
| Temperature Rating | -40°F to 212°F (-40°C to 100°C) |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
