Technical reference

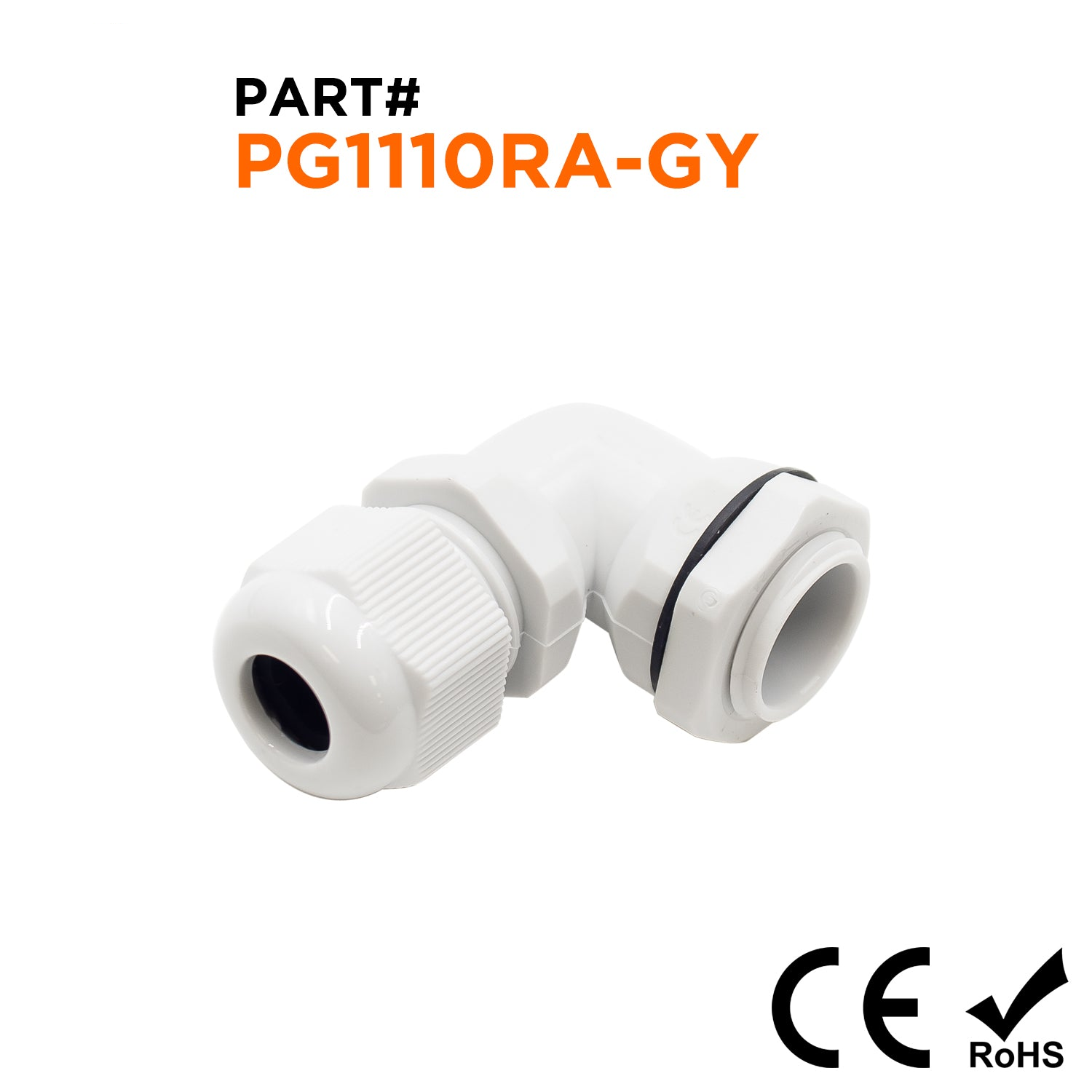

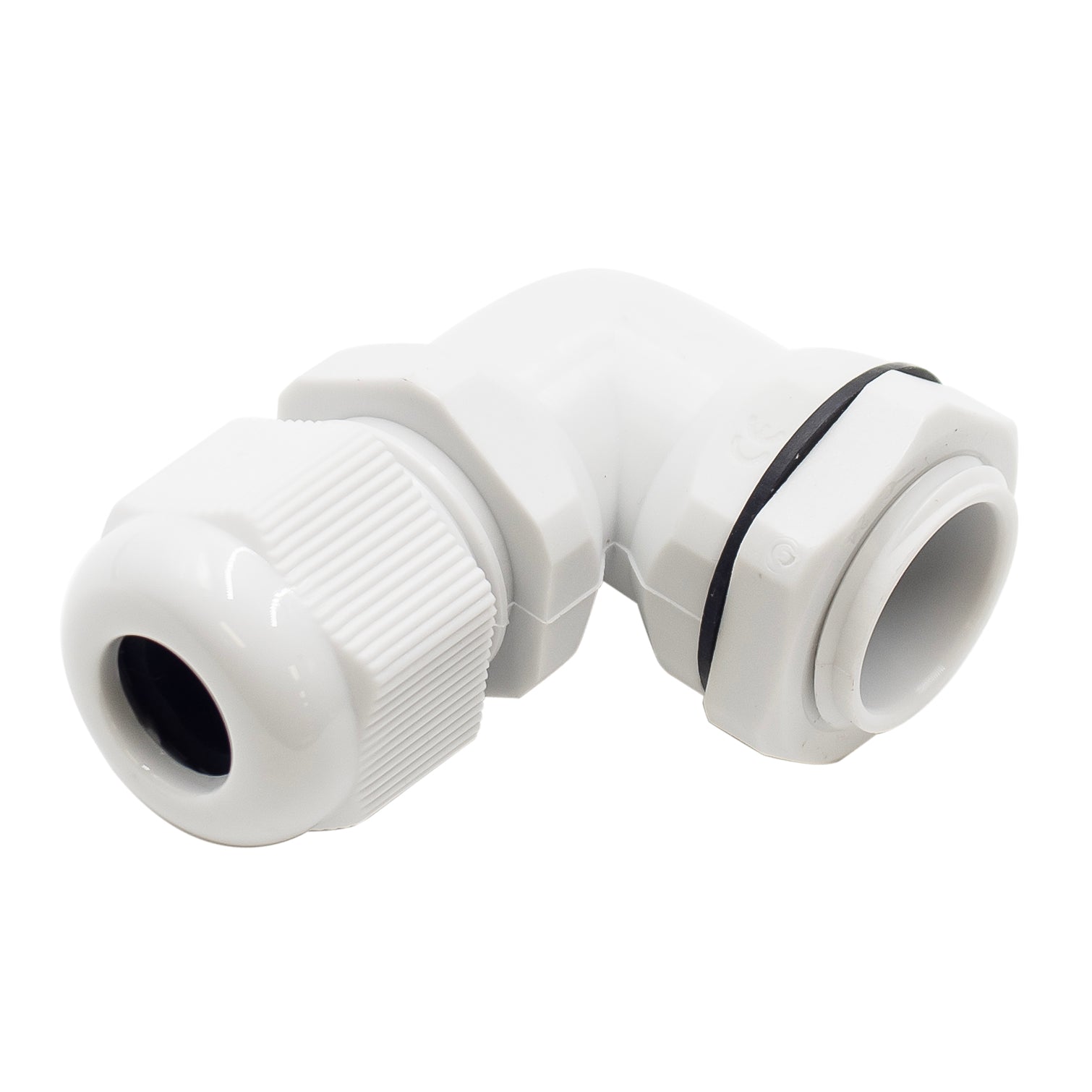

Procurement reference model: PG1110RA-GY. Thread Size: PG11; Cable Range: 5-10mm; Color: Gray. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG11 |
| Cable Range | 5-10mm |
| Color | Gray |
| C1 | 18.4mm (0.72") |
| C2 | 16.8mm (0.66") |
| D2 | 14.2mm (0.56") |
| B1 | 10.5mm (0.41") |
| H | 28.7mm (1.13") |
| L | 47.1mm (1.85") |
| L1 | 8.9mm (0.35") |
| L2 | 11mm (0.43") |
| L3 | 16.6mm (0.65") |
| Material | UL Approved 94UV-2 |
| Flammability | PA (Nylon), UL 94 |
| Hermetic Seal | NBR (Nitrile Rubber) |
| O-Ring | EPDM |
| Working Temperature | -40°C to 105°C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
