Technical reference

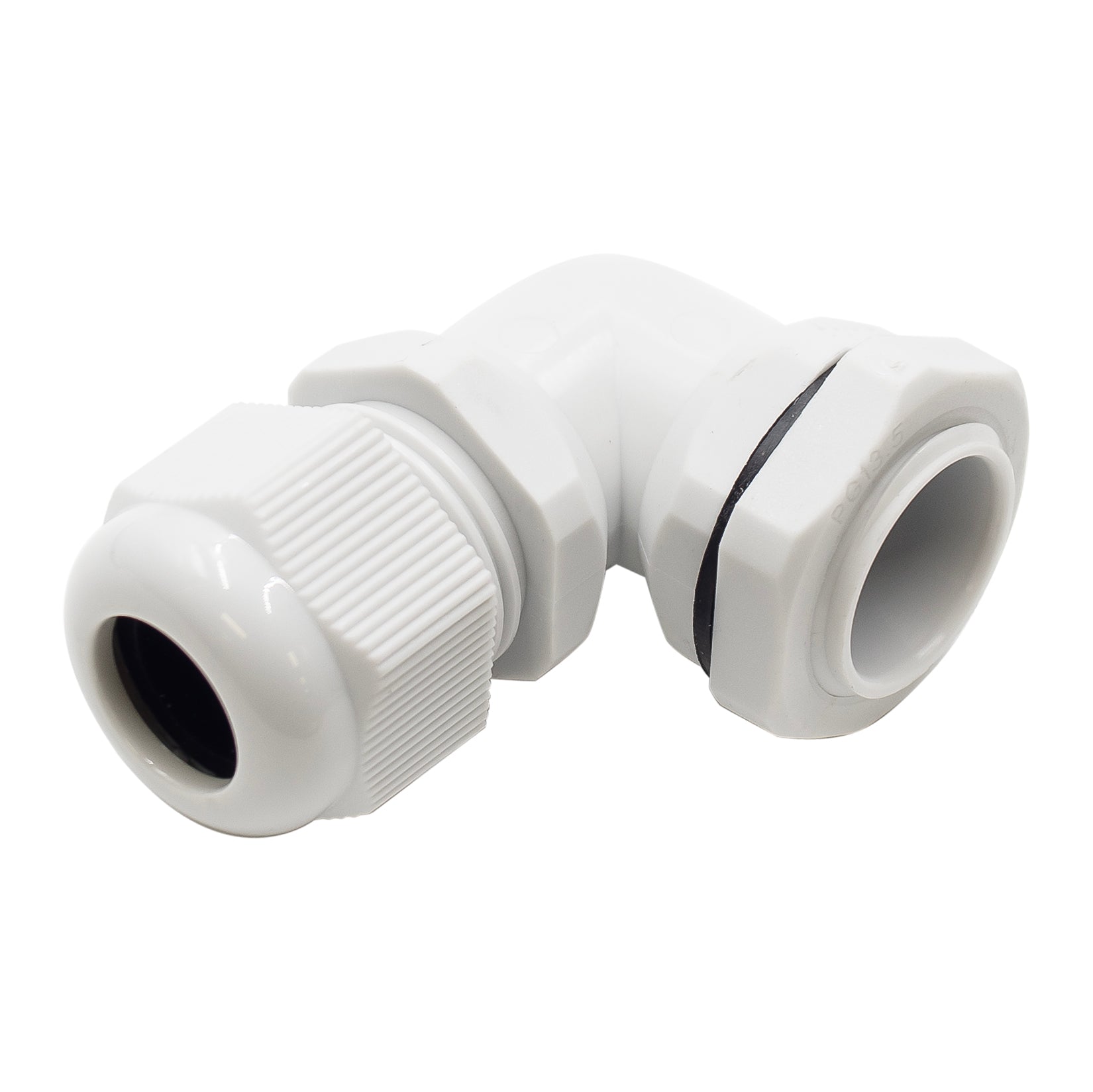

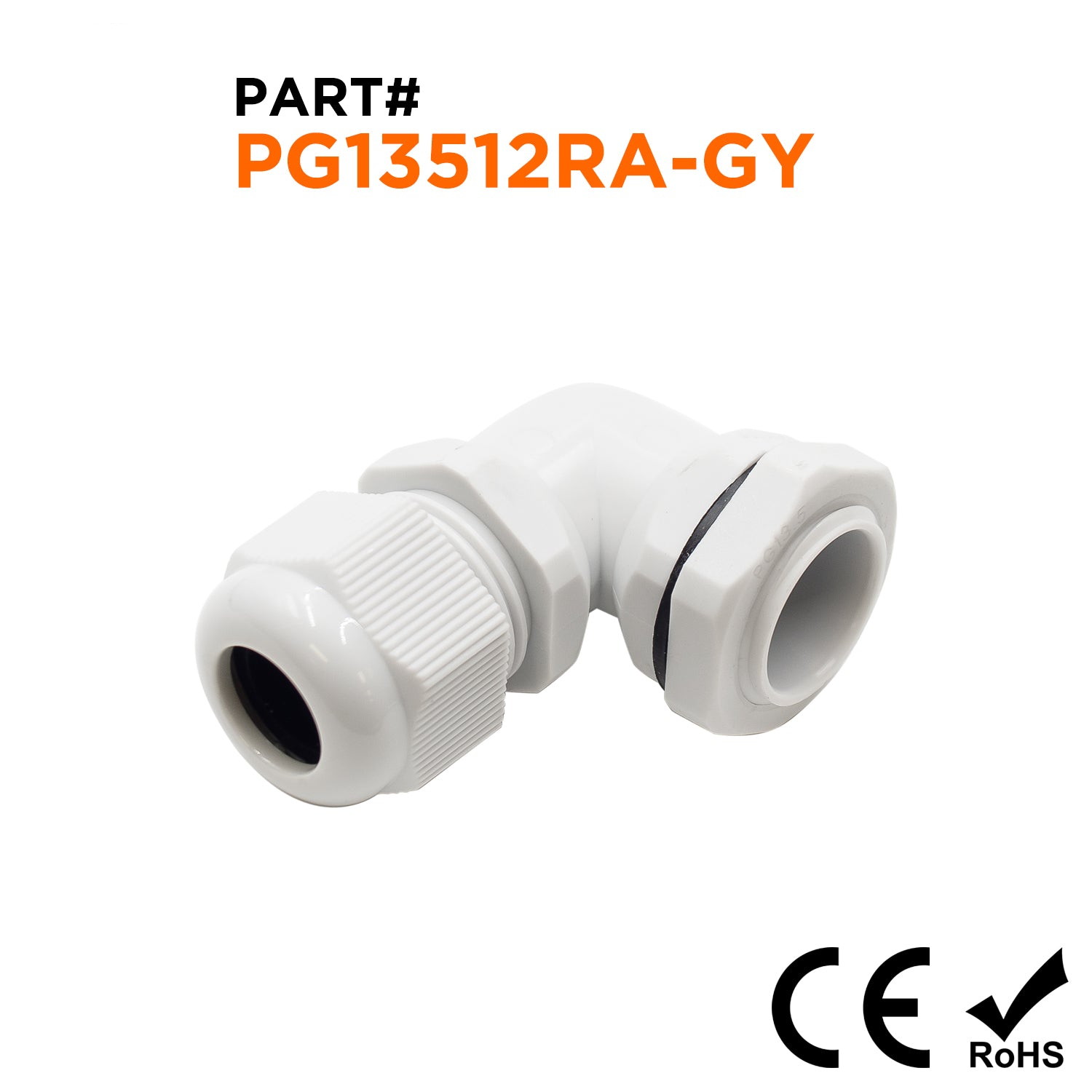

Procurement reference model: PG13512RA-GY. Thread Size: PG13.5; Cable Range: 6-12mm; Color: Gray. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG13.5 |
| Cable Range | 6-12mm |
| Color | Gray |
| C1 | 20.3mm (0.80") |
| C2 | 18.7mm (0.74") |
| D2 | 15.9mm (0.63") |
| B1 | 12.6mm (0.50") |
| H | 30.6mm (1.20") |
| L | 50.9mm (2.00") |
| L1 | 8.9mm (0.35") |
| L2 | 12mm (0.47") |
| L3 | 17.7mm (0.70") |
| Material | UL Approved 94UV-2 |
| Flammability | PA (Nylon), UL 94 |
| Hermetic Seal | NBR (Nitrile Rubber) |
| O-Ring | EPDM |
| Working Temperature | -40°C to 105°C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
