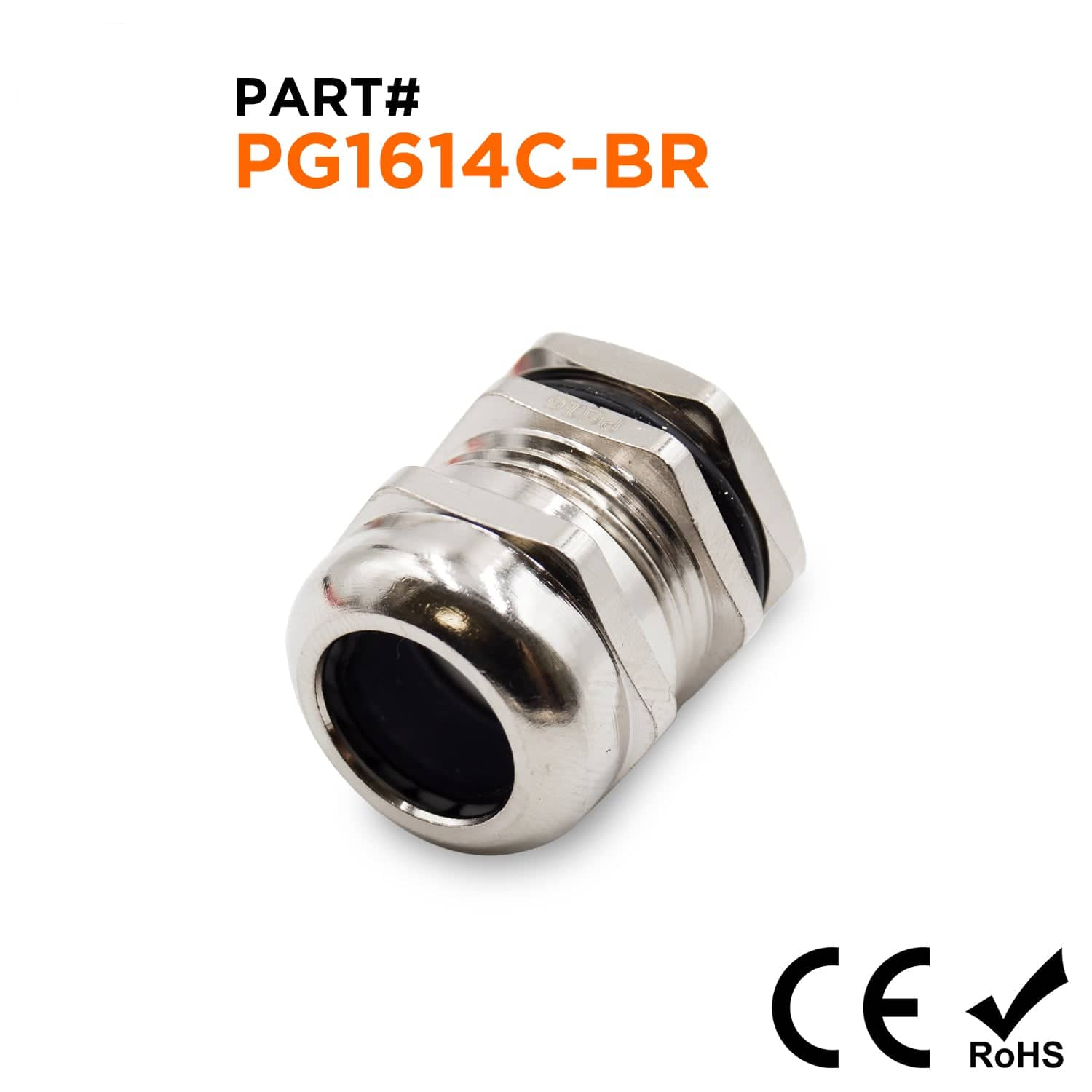

Procurement reference model: PG1614C-BR. Thread Size: PG16; Cable Range: 3/8" to 9/16" (10-14mm); C1: 22.3mm (0.88"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG16 |
| Cable Range | 3/8" to 9/16" (10-14mm) |

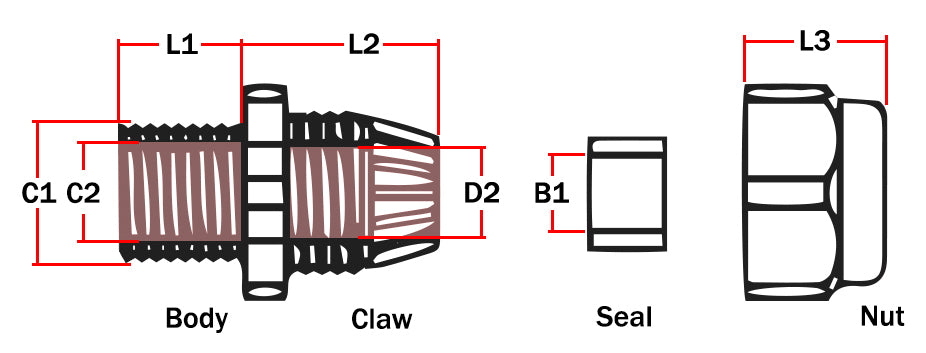

| C1 | 22.3mm (0.88") |
| C2 | 14.3mm (0.56") |
| D2 | 1 4.3 mm (0. 56 ") |
| B1 | 1 4.3 mm (0. 56 ") |
| L1 | 6.2mm (0.24") |
| L2 | 21.5mm (0.85") |
| L3 | 13.8mm (0.54") |
| Material | Nickel-Plated Brass |
| Flammability | PA (Nylon), UL 94 |
| Ingress Protection | IP68 |
| Hermetic Seal | NBR (Nitrile Rubber) |
| O-Ring | EPDM |
| Working Temperature | -40°C to 105°C |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
