Technical reference

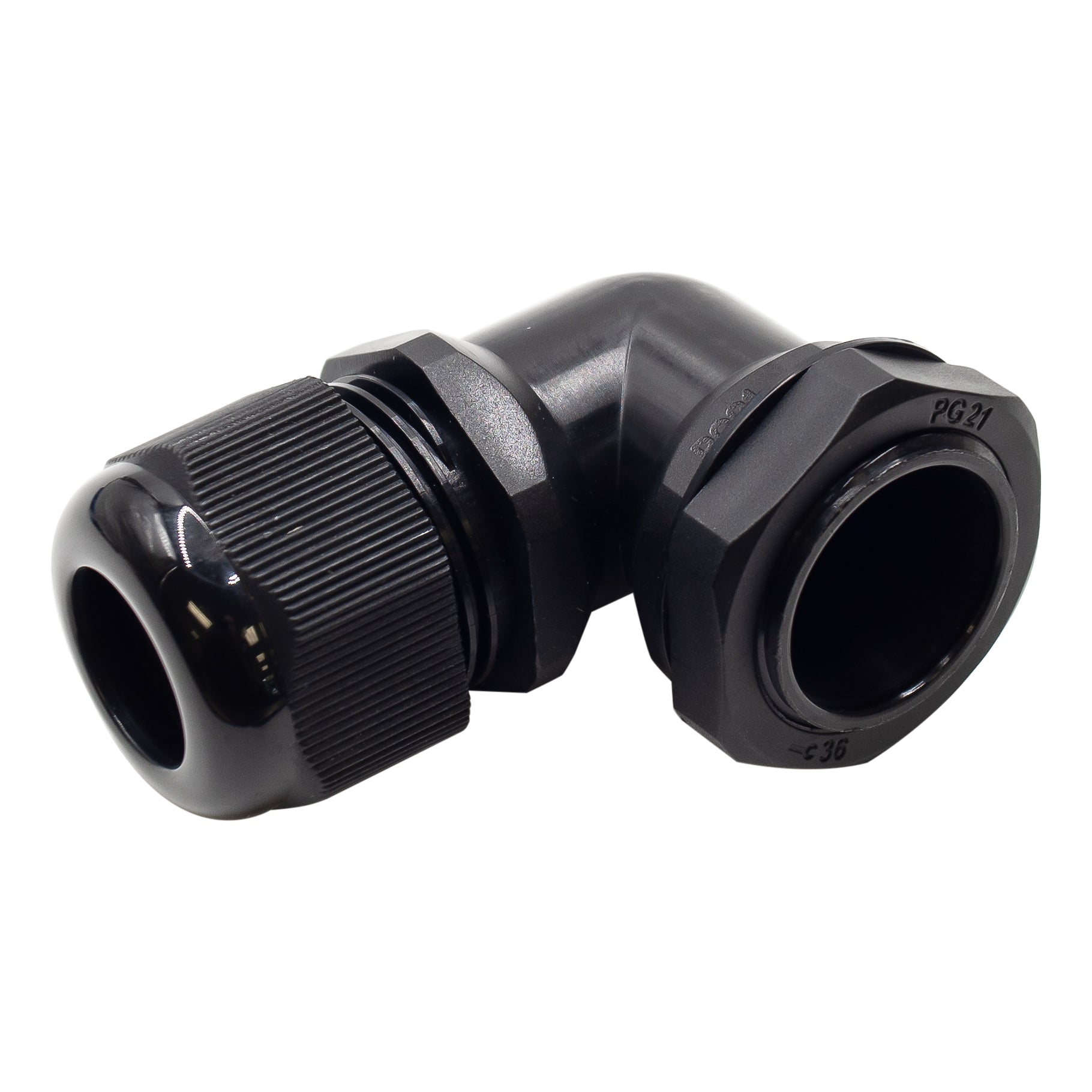

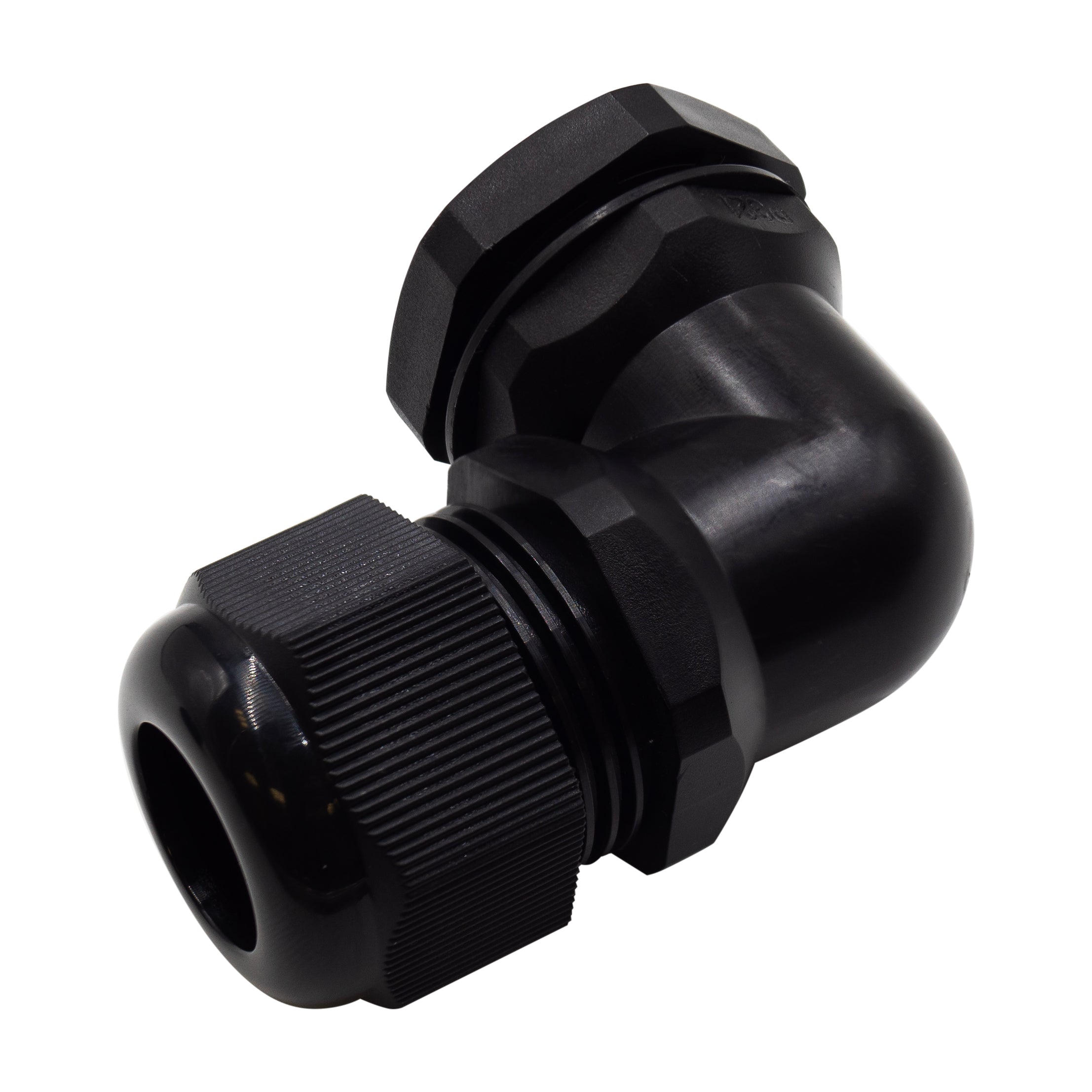

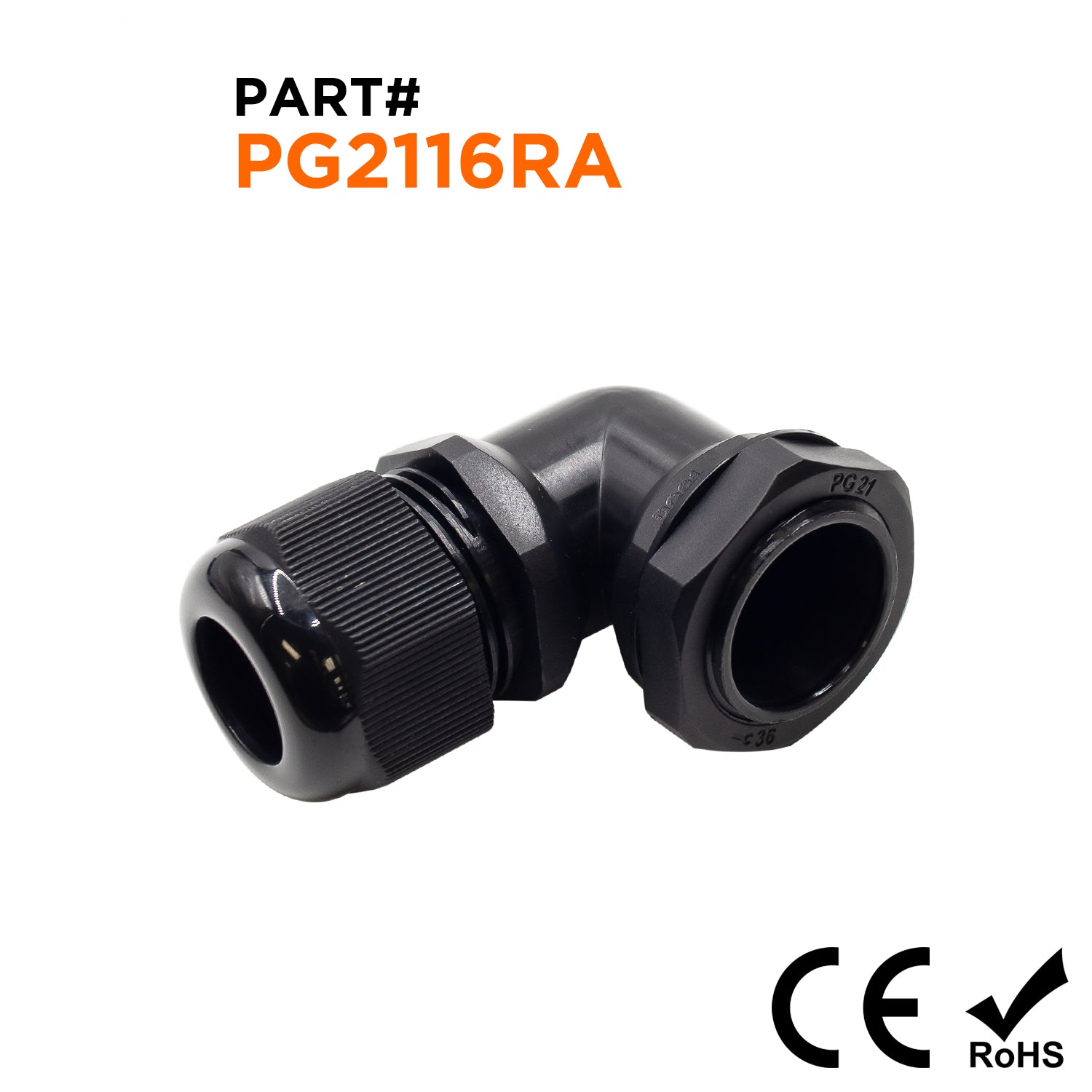

Procurement reference model: PG2116RA. Thread Size: PG21; Cable Range: 3/8" to 5/8" (9-16mm); Color: Black. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG21 |
| Cable Range | 3/8" to 5/8" (9-16mm) |
| Color | Black |
| C1 | 28.3mm (1.11") |
| C2 | 26.9mm (1.06") |
| D2 | 23.1mm (0.91") |
| B1 | 16.1mm (0.63") |
| H | 41.2mm (1.62") |
| L | 66.4mm (2.61") |
| L1 | 10.1mm (0.40") |
| L2 | 14.2mm (0.56") |
| L3 | 22.8mm (0.90") |
| Material | UL Approved 94UV-2 |
| Flammability | PA (Nylon), UL 94 |
| Hermetic Seal | NBR (Nitrile Rubber) |
| O-Ring | EPDM |
| Working Temperature | -40°C to 105°C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
