Technical reference

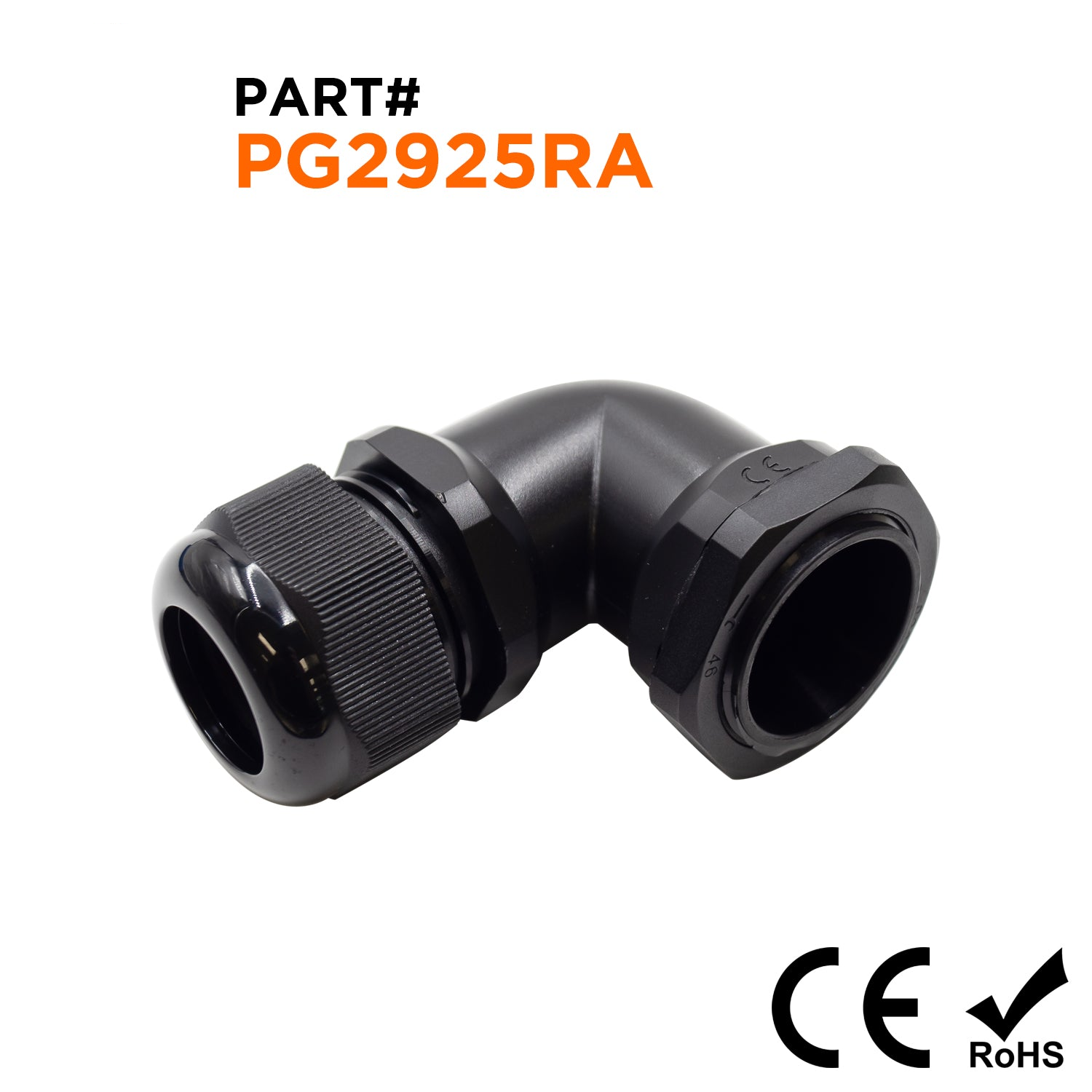

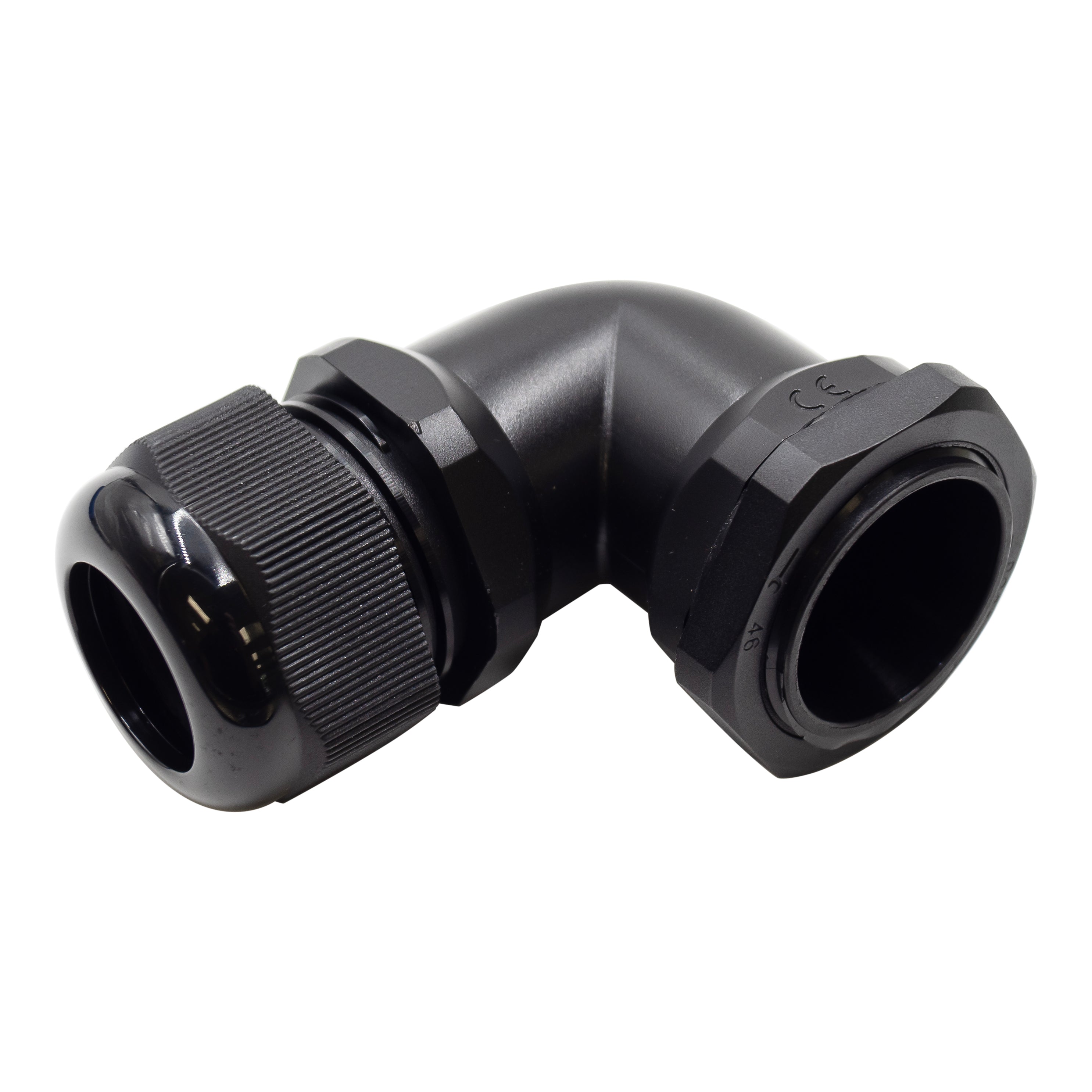

Procurement reference model: PG2925RA. Thread Size: PG29; Cable Range: 18-25mm; Color: Black. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Thread Size | PG29 |
| Cable Range | 18-25mm |
| Color | Black |
| C1 | 36.45mm (1.43") |
| C2 | 34.85mm (1.37") |
| D2 | 30.55mm (1.20") |
| B1 | 25.45mm (1.00") |
| H | 59.20mm (2.33") |
| L | 86.63mm (3.41") |
| L1 | 10.9mm (0.429") |
| L2 | 14.1mm (0.554") |
| L3 | 25.12mm (0.988") |
| Material | UL Approved 94UV-2 |
| Flammability | PA (Nylon), UL 94 |
| Hermetic Seal | NBR (Nitrile Rubber) |
| O-Ring | EPDM |
| Working Temperature | -40°C to 105°C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
