Technical reference

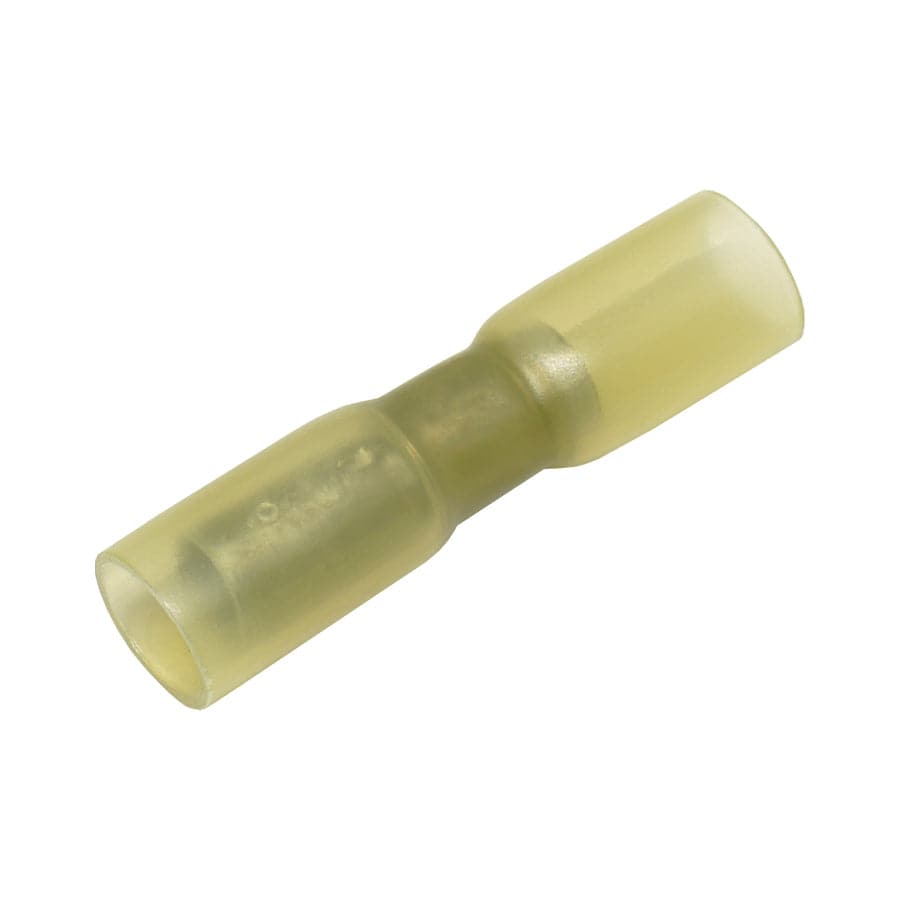

Procurement reference model: SBTF102-4. Wire Range: 12 to 10 AWG (4.00mm2 to 6.00mm2); W: 0.16" (4.0mm); F: 0.43" (11.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

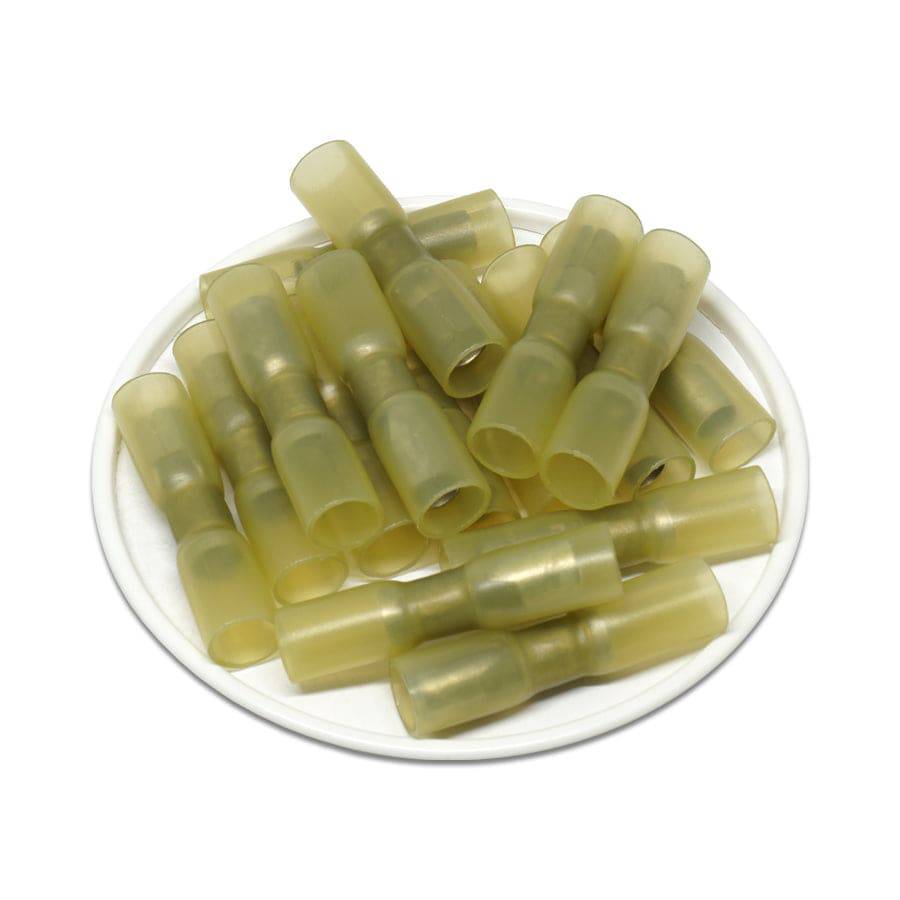

| Reference pack size | 25 · source pack reference |
| Wire Range | 12 to 10 AWG (4.00mm2 to 6.00mm2) |
| W | 0.16" (4.0mm) |
| F | 0.43" (11.0mm) |
| L | 1.40" (35.6mm) |
| B | 0.79" (20.0mm) |
| C | 0.13" (3.4mm) |
| D | 0.27" (6.8mm) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polyethylene |
| Color | Yellow |
| Temperature Rating | -131 o F to 257 o F (-55 o C to 125 o C) |
Drawings and product details
