Technical reference

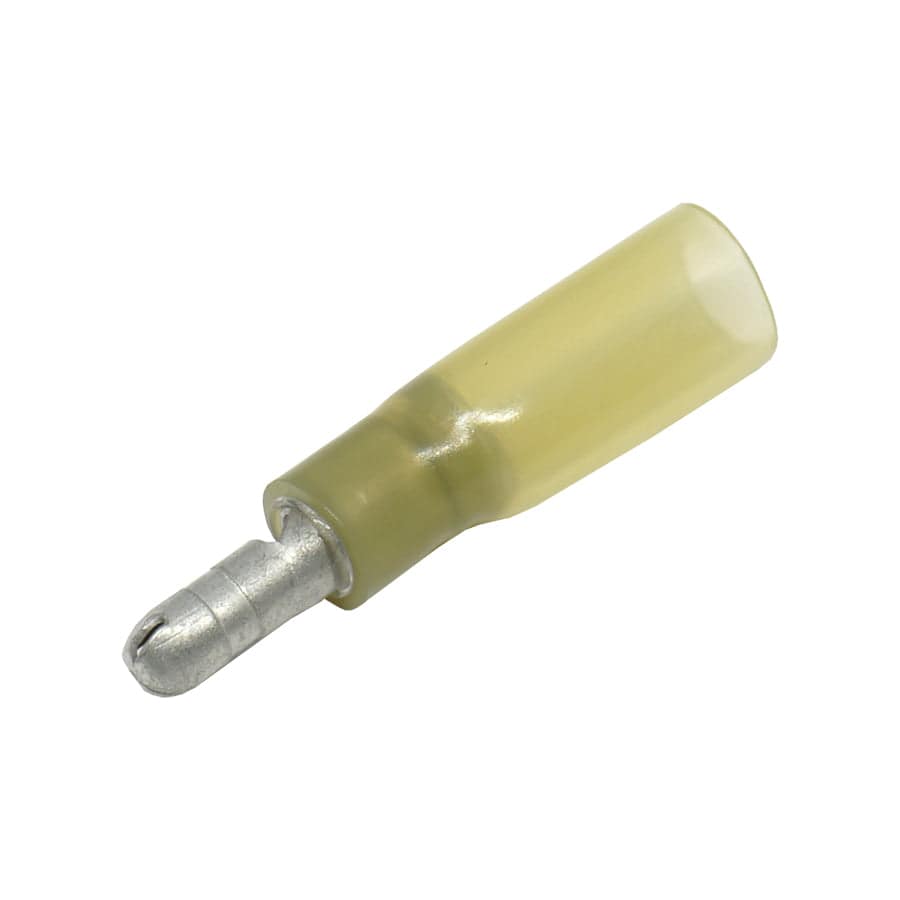

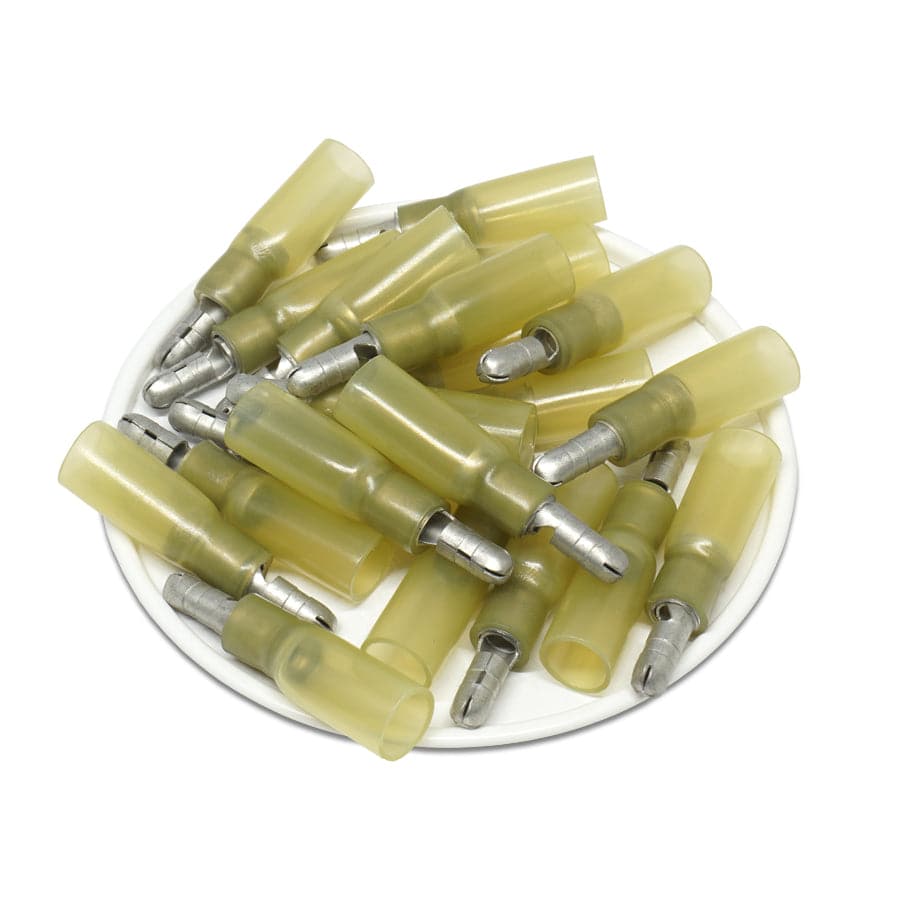

Procurement reference model: SBTM102-5. Wire Range: 12-10 AWG; D: 0.27" (6.8mm); D1: 0.13" (3.4mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 12-10 AWG |
| D | 0.27" (6.8mm) |
| D1 | 0.13" (3.4mm) |
| B | 0.20" (5.0mm) |
| E | 0.98" (25.0mm) |
| L | 1.38" (35.0mm) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polythylene |
| Color | Yellow |
| Temperature Rating | -55 o C to 125 o C |
Drawings and product details
